55 Electrical equipmentUpdate 2003

Update 2003

Version with air conditioning

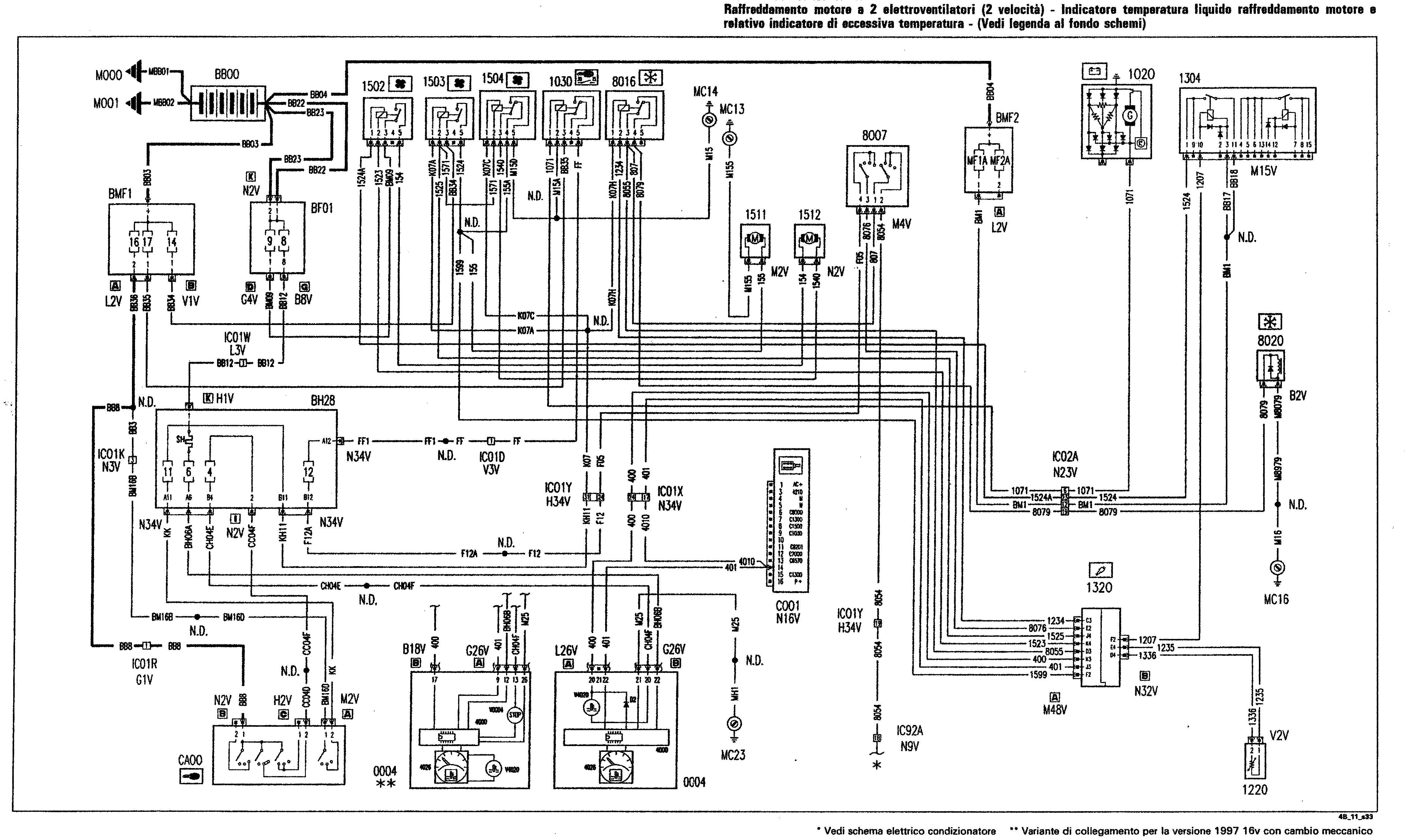

Engine cooling by 2 electric fans (2 speeds) - Engine coolant temperature indicator and related excessive temperature indicator - (See legend at the bottom of the diagrams)

View full sizeFit to page

* See air conditioning wiring diagram    ** Connection variant for the 1997 16v version with manual gearbox
