55 Electrical equipmentCentral locking

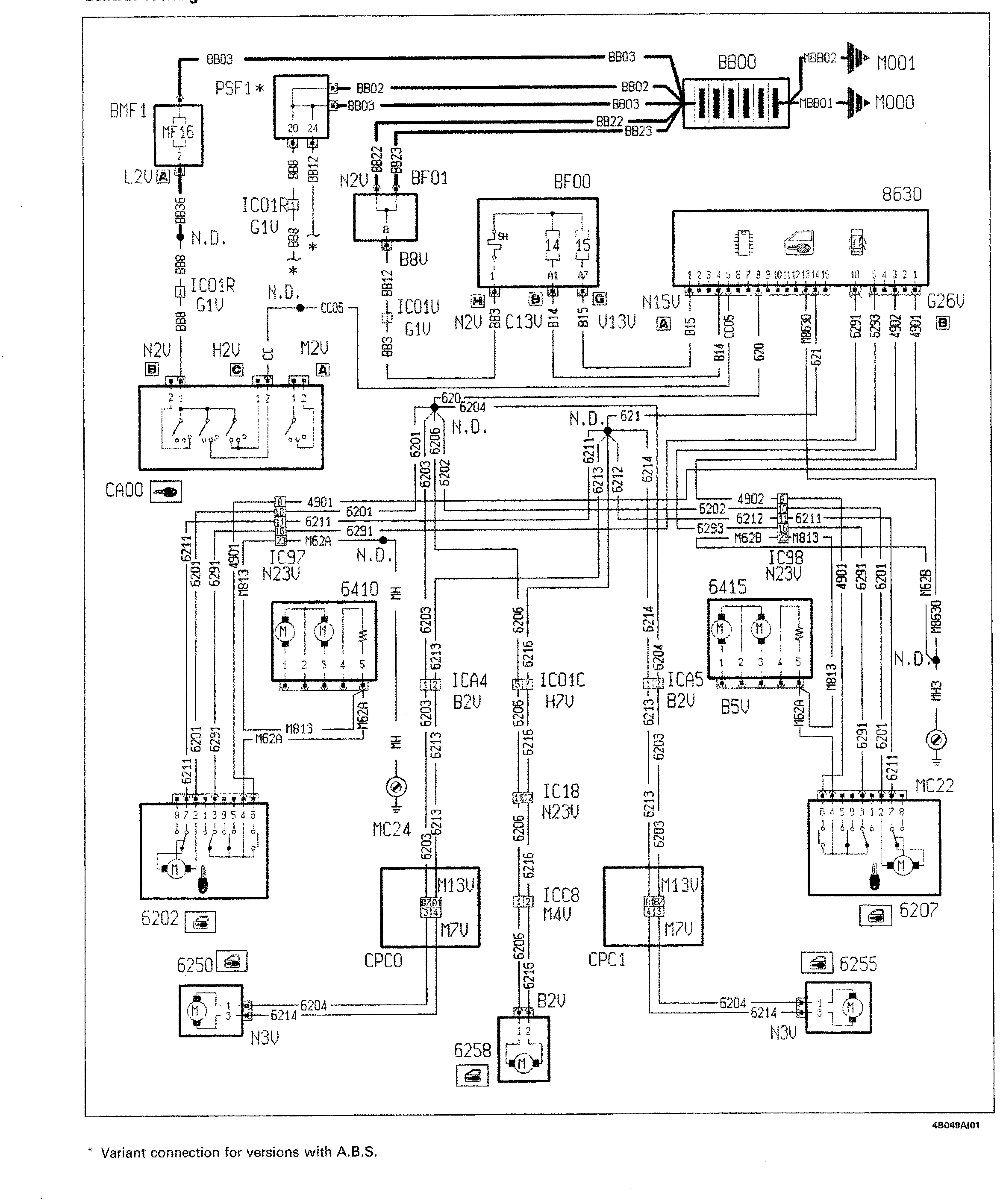

Central locking – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Central locking
* Variant connection for versions with A.B.S.
