Location of components - '99 range

Location of components - '99 range

* View of junction unit IC01 from dashboard side

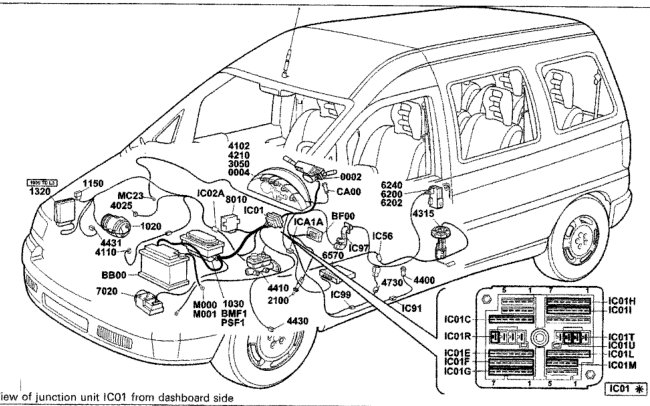

Location of components on the car.

Key to connections

• BB00 Battery
• BF00 Junction unit (vehicle interior)

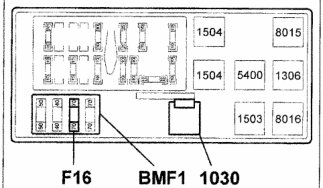

• BMF1 Max fuse control unit
• CA00 Ignition switch
• FSF1 Junction unit (engine compartment)
• 0002 Steering column switch unit
• 0004 Instrument panel
• 4000 Instrument panel electronic control module
• V0004 General failure warning light
• V1000 Battery recharging warning light
• V1150 Heater plugs warning light
• V2000 Rear fog lamps warning light
• V2320 Left direction indicator warning light
• V2330 Right direction indicator warning light
• V2910 Dipped headlamps warning light
• V2620 Main beam headlamps warning light
• V4010 Insufficient engine coolant level warning light
• V4020 Engine coolant overheating warning light
• V4110 Insufficient engine oil pressure warning light
• V4300 Fuel reserve warning light
• V4420 Handbrake applied and brake fluid level warning light
• V4430 Brake pad wear warning light
• V4720 Side lights on auditory signal (inside instrument panel)
• V4730 Seat belts not fastened warning light
• V8660 Air Bag circuit failure warning light
• V7000 Anti-lock brakes circuit failure warning light (A.B.S.)
• 1020 Alternator
• 1030 Switch discharge relay
• 1150 Heater plugs control unit
• 1202 Speedometer relay
• 1250 Injection/ignition control unit
• 2100 Brake lights control switch
• 3360 Light dimmer
• 4010 Insufficient engine coolant level sensor
• 4025 Engine coolant temperature sensor
• 4026 Engine coolant temperature gauge
• 4102 Maintenance display
• 4110 Switch signalling insufficient engine oil pressure
• 4210 Rev counter
• 4310 Fuel gauge
• 4315 Fuel pump/gauge assembly
• 4400 Switch signalling handbrake applied
• 4410 Switch signalling insufficient brake fluid level
• 4430 Left front brake pad wear sensor
• 4431 Right front brake pad wear sensor
• 6200 Driver's front door central locking remote control switch
• 6202 Driver's front door lock assembly
• 6240 Driver's front door central locking motor
• 6570 Air Bag/pretensioner control unit
• 7020 Anti-lock brakes electronic control unit
• 7220 Digital clock
• 8004 Engine cooling system cut out control unit
• 8010 Engine cooling system electronic control unit

Key to connections

• IC01C Connection between main and dashboard cables
• IC01E Connection between main and dashboard cables
• IC01F Connection between main and dashboard cables
• IC01G Connection between main and dashboard cables
• IC01H Connection between main and dashboard cables
• IC01I Connection between main and dashboard cables
• IC01J Connection between main and dashboard cables
• IC01L Connection between main and dashboard cables
• IC01M Connection between main and dashboard cables
• IC01R Connection between main and dashboard cables
• IC01T Connection between main and dashboard cables
• IC01U Connection between main and dashboard cables
• IC01 Interconnection between main and dashboard cables
• IC02A Connection between main and engine cables
• IC14A Connection between dashboard and Air-Bag/pretensioner cables
• IC58 Connection between main and fuel pump/gauge cables
• IC91 Connection between dashboard and switch signalling handbrake applied cables
• IC97 Connection between dashboard and driver's front door cables
• IC98 Connection between dashboard and switch signalling seat belts not fastened cables

Key to earths

• MC23 Right dashboard earth
• M000 Battery earth
• M001 Battery earth

N.D. Ultrasonic welding taped in cable loom

Instrument panel connections

* Refer to the key for the list of components
