Maintenance indicator
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (99 range) › Maintenance indicator
‹ Prev Location of components - Air conditioning (with A.B.S)Next › Location of components - Air conditioning (with A.B.S)
55 Electrical equipmentMaintenance indicator

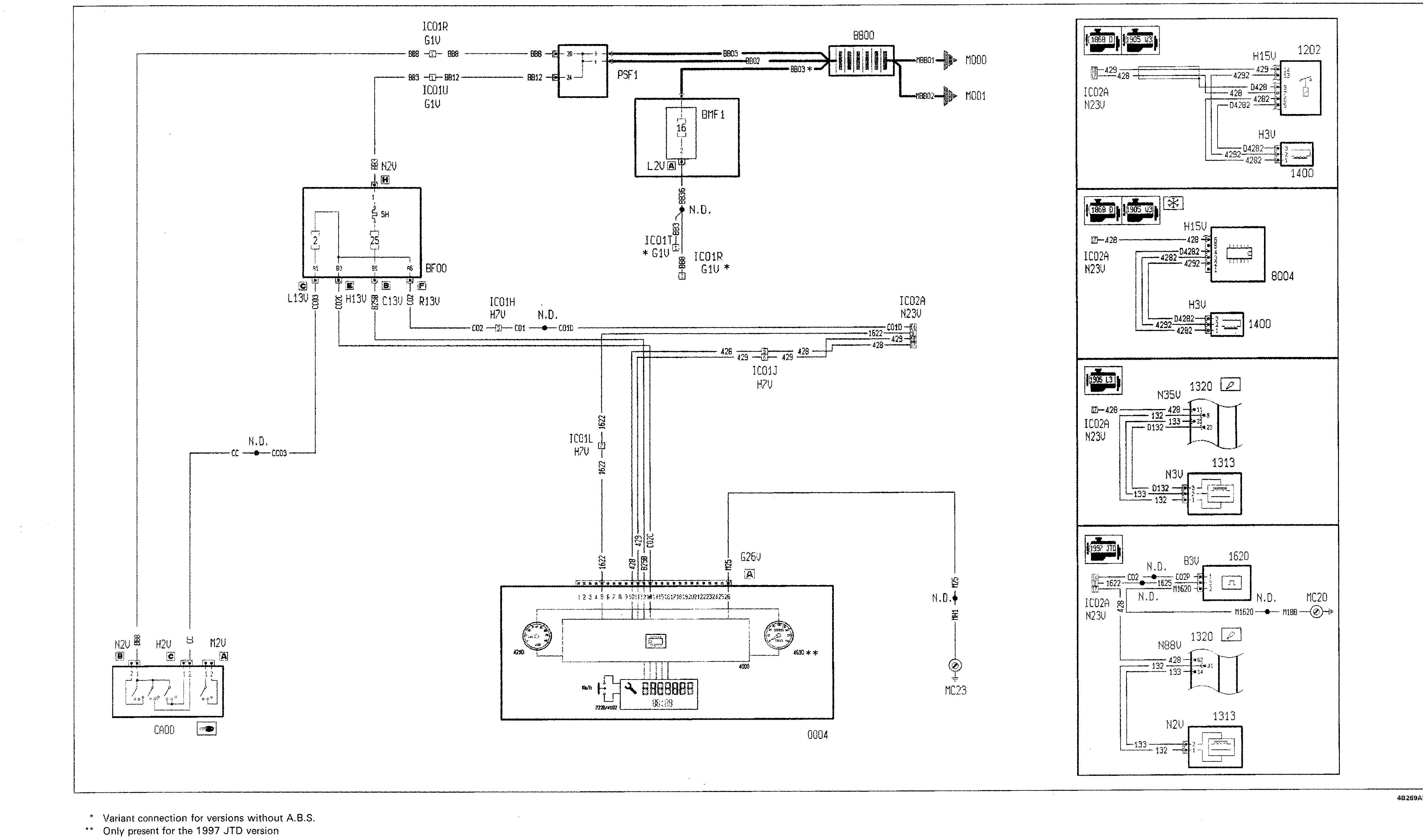

Maintenance indicator – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Maintenance indicator
* Variant connection for versions without A.B.S.
** Only present for the 1997 JTD version
