55 Electrical equipmentInstrument panel connections

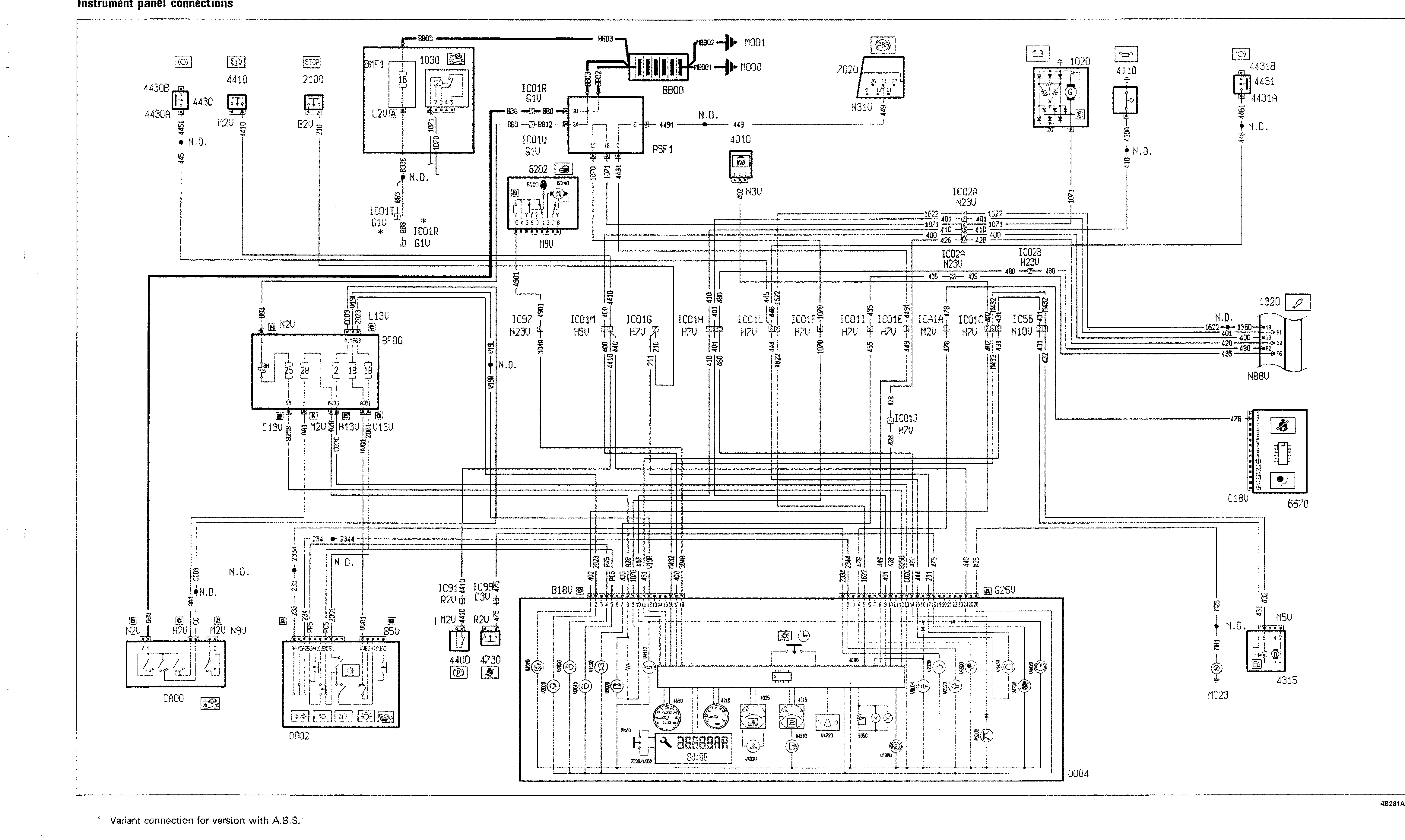

Instrument panel connections – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Instrument panel connections
* Variant connection for version with A.B.S.
