Comfort trim level

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Wiring diagrams (99 range) › Comfort trim level

55 Electrical equipmentComfort trim level

Comfort trim level

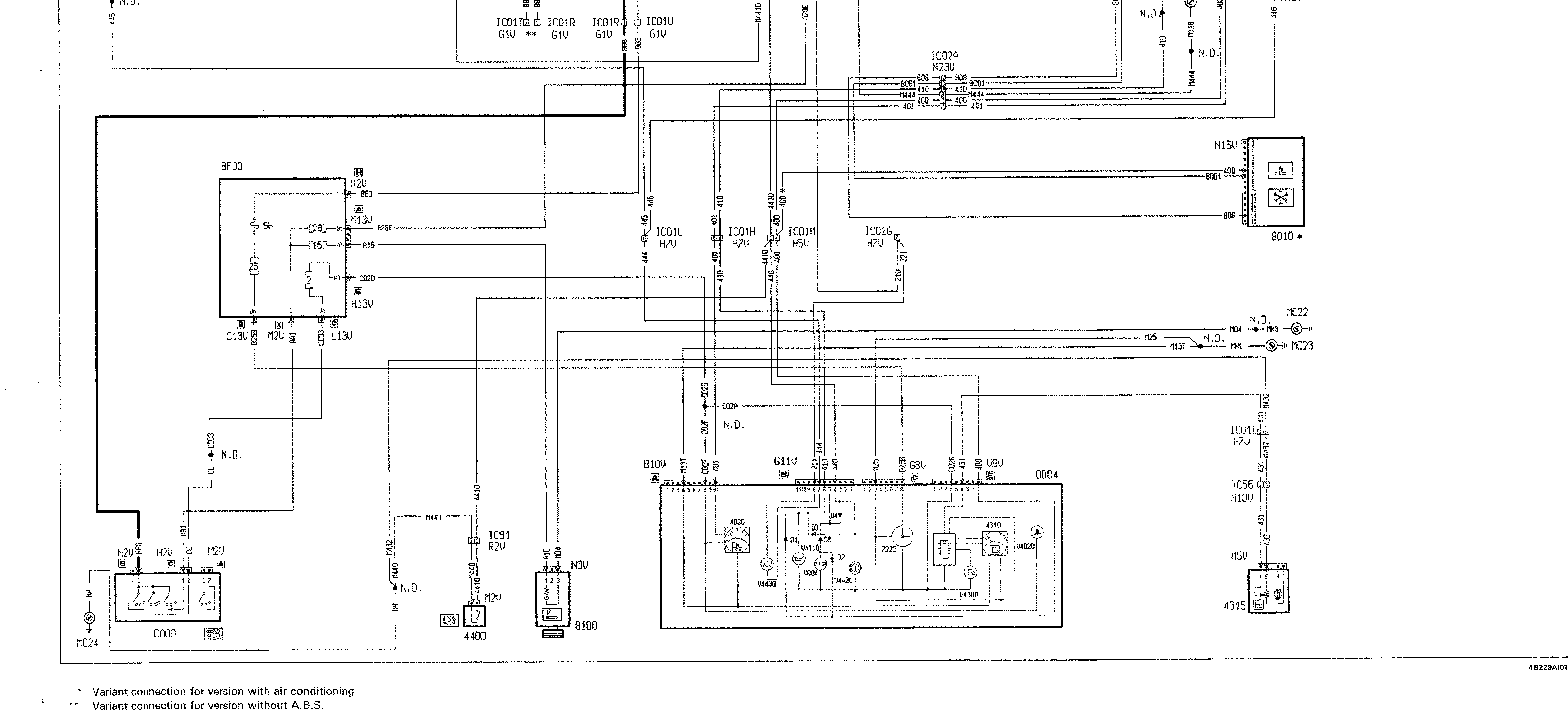

Fuel gauge and reserve warning light – Engine coolant temperature gauge and overheating warning light – Brake pad wear warning light – Insufficient engine oil pressure warning light – Handbrake applied and insufficient brake fluid level warning light – Clock – Cigar lighter

View full sizeFit to page

* Variant connection for version with air conditioning

** Variant connection for version without A.B.S.
