Location of components - BB00 Battery

Location of components - BB00 Battery

Instrument panel connections

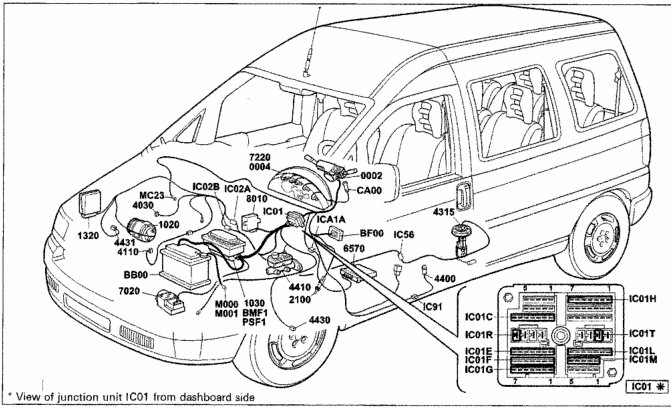

* View of junction unit IC01 from dashboard side

Location of components on the car.

Key to connections

BF00 Junction unit (vehicle interior)

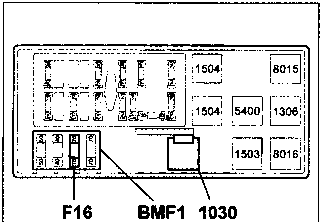

BMF1 Main fuse control unit

CA00 Ignition switch

PSF1 Junction unit (engine compartment)

0002 Steering column switch unit

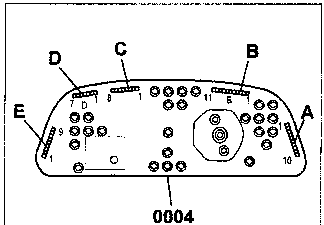

0004 Instrument panel

V0004 General failure warning light

V1000 Recharging warning light

V1300 Injection system failure warning light

V2000 Rear fog lamps warning light

V2320 Left direction indicator warning light

V2330 Right direction indicator warning light

V2810 Dipped headlamps warning light

V2820 Main beam headlamps warning light

V4020 Engine coolant overheating warning light

V4110 Insufficient engine oil pressure warning light

V4320 Fuel reserve warning light

V4420 Handbrake applied and brake fluid level warning light

V4430 Brake pad wear warning light

V6580 Air Bag circuit failure warning light

V7000 Anti-lock brakes circuit warning light (A.B.S.)

1020 Alternator

1030 Switch discharge relay

1320 Injection/ignition control unit

2100 Brake lights control switch

4030 Engine coolant temperature sensor

4026 Engine coolant temperature gauge

4110 Switch signalling insufficient engine oil pressure

4310 Fuel gauge

4315 Fuel pump/gauge assembly

4400 Switch signalling handbrake applied

4410 Switch signalling insufficient brake fluid level

4430 Left front brake pad wear sensor

4431 Right front brake pad wear sensor

6570 Air Bag/pretensioners control unit

7020 Anti-lock brakes electronic control unit

7220 Analogue clock

8010 Engine cooling system electronic control unit

Key to connections

IC01C Connection between main and dashboard cables

IC01E Connection between main and dashboard cables

IC01F Connection between main and dashboard cables

IC01G Connection between main and dashboard cables

IC01H Connection between main and dashboard cables

IC01L Connection between main and dashboard cables

IC01M Connection between main and dashboard cables

IC01R Connection between main and dashboard cables

IC01T Connection between main and dashboard cables

IC01 Interconnection between main and dashboard cables

IC02A Connection between main and engine cables

IC02B Connection between main and engine cables

IC01A Connection between dashboard and Air-bag / pretensioner cables

IC56 Connection between main and fuel pump/gauge cables

IC91 Connection between dashboard and switch signalling handbrake applied cables

Key to earths

MC23 Right dashboard earth

M000 Battery earth

M001 Battery earth

N.D. Ultrasound welding taped in cable loom

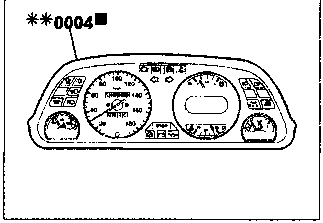

* Comfort instrument panel      ** Basic instrument panel

■ Refer to the key for the list of components
