Location of components - Fiat-CODE

Location of components - Fiat-CODE

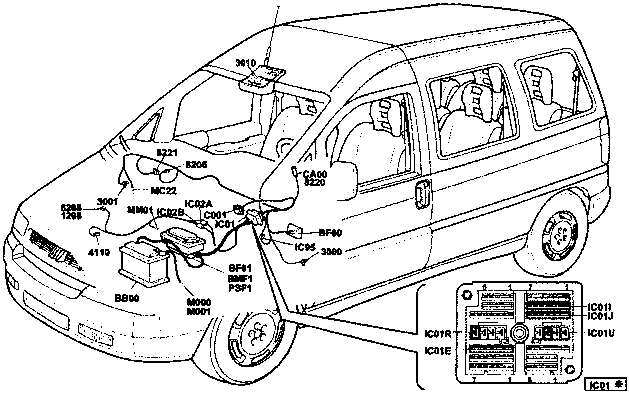

* View of junction unit IC01 from dashboard side

Component key

• BB00 Battery

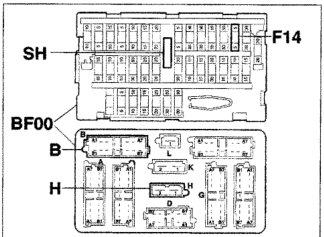

• BF00 Junction unit (vehicle interior)
• BF01 Junction unit (engine compartment)

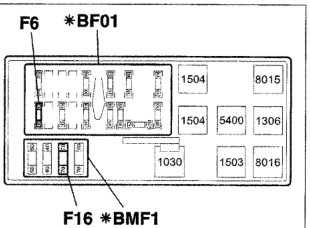

• BMF1 Main fuse control unit
• CA00 Ignition switch

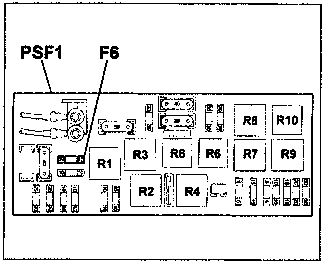

• PSF1 Junction unit (engine compartment)
• 1208 Diesel pump control unit
• 3000 Left front courtesy light button
• 3001 Right front courtesy light button
• 3010 Vehicle interior front courtesy light
• 4110 Switch signalling insufficient engine oil pressure
• 8206 Fiat-CODE/vehicle interior front lighting connecting diode
• 8207 Diesel pump coded starting relay
• 8208 Coded starting control unit
• 8220 Fiat-CODE aerial
• 8221 Fiat-CODE control unit

Key to connections

• CO01 Diagnostic connector
• IC01E Connection between main and dashboard cables
• IC01I Connection between main and dashboard cables
• IC01J Connection between main and dashboard cables
• IC01R Connection between main and dashboard cables
• IC01U Connection between main and dashboard cables
• IC01 Interconnection between main and dashboard cables
• IC02A Connection between main and engine cables
• IC02B Connection between main and engine cables
• IC95 Connection between dashboard and courtesy light cables

Key to earths

• MC22 Right dashboard earth
• M000 Battery earth
• M001 Battery earth
• MM01 Engine earth
• N.D. Ultrasound welding taped in cable loom

* Variant connections for versions without A.B.S.
