55 Electrical equipmentHeadlamp alignment – Radio

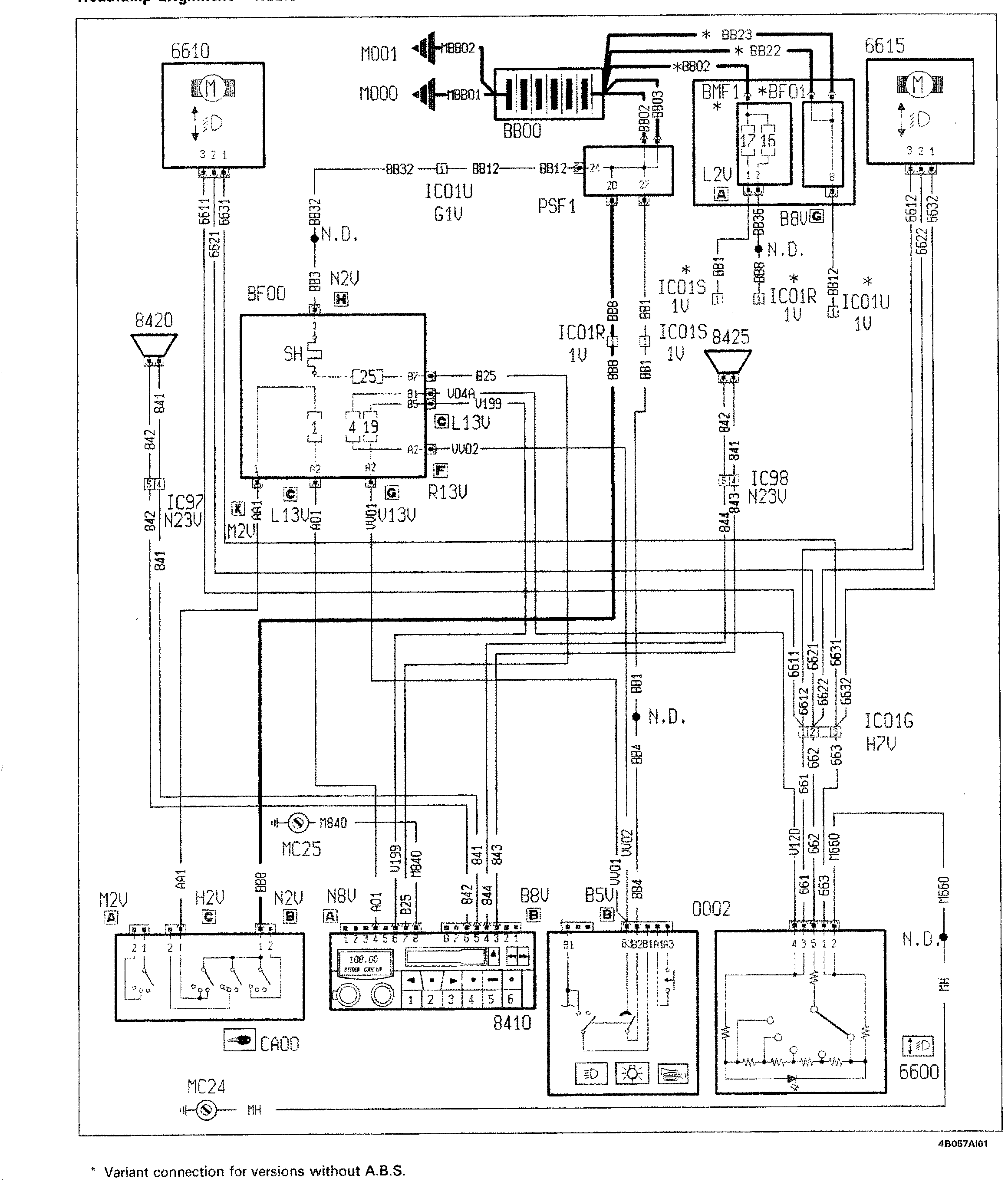

Headlamp alignment – Radio – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Headlamp alignment – Radio
* Variant connection for versions without A.B.S.
