Instrument panel connections
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (99 range) › Instrument panel connections

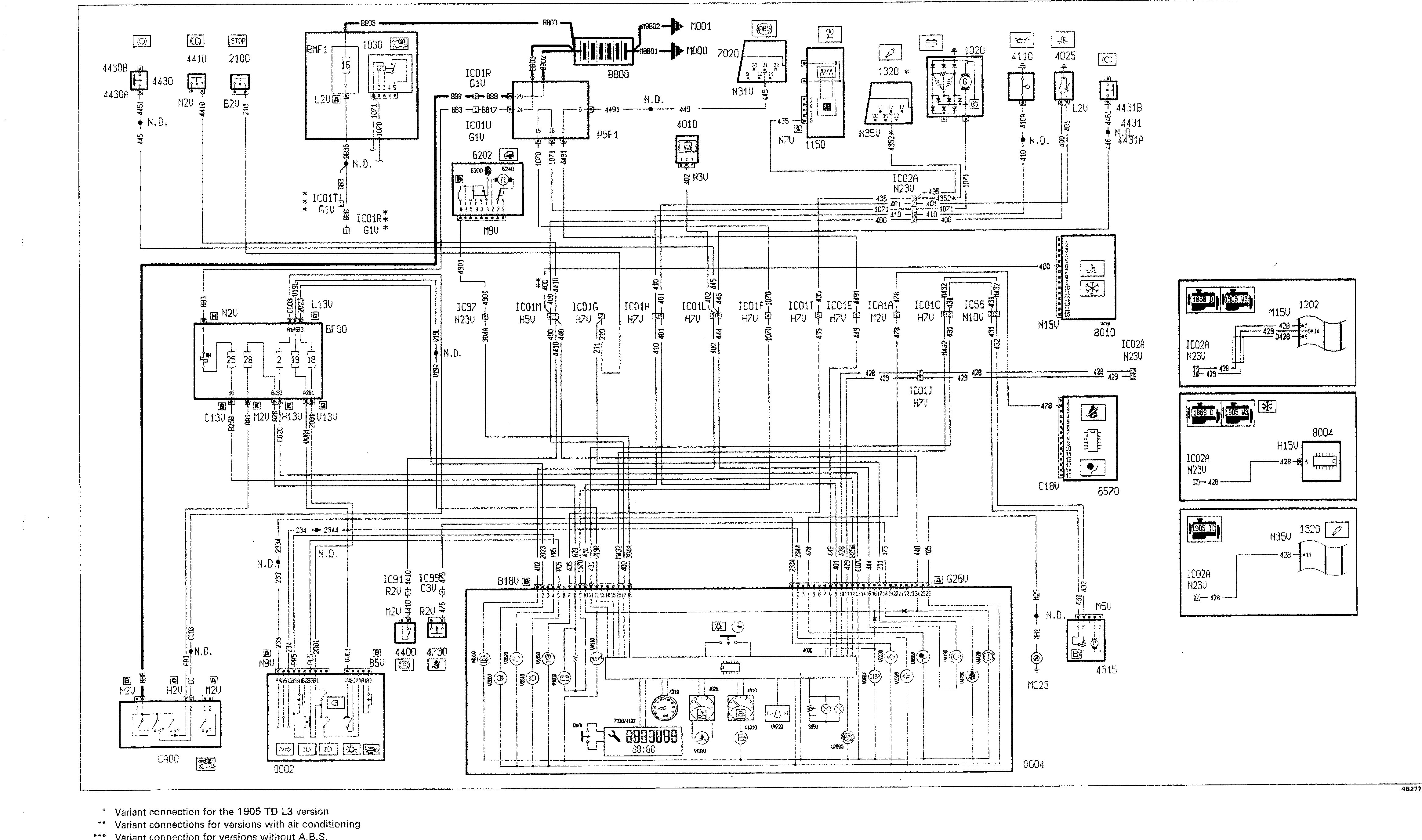

55 Electrical equipmentInstrument panel connections
Instrument panel connections
* Variant connection for the 1905 TD L3 version
** Variant connections for versions with air conditioning
*** Variant connection for versions without A.B.S.
