Wiring diagrams and electrical functionsFog lights location components

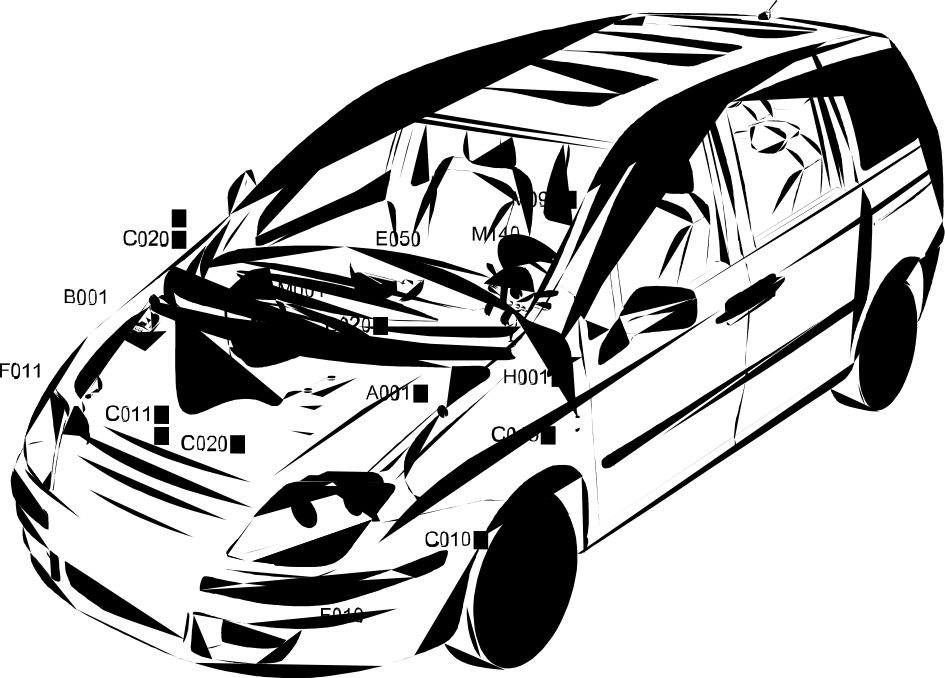

FOG LIGHTS LOCATION COMPONENTS
Location Components
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | Engine compartment junction unit | 5,505A |
| C010 | Left front earth | |
| C011 | Right front earth | |
| C015 | Driver''s dashboard earth | |
| C020 | Passenger dashboard earth | |
| D020 | Dashboard/rear coupling | |
| E050 | Instrument panel | 5560B |
| F010 | Left headlamp | 5540B |
| F011 | Right headlamp | 5540B |
| M001 | Body computer | 5505A |
| M093 | Steering wheel node control unit (NVO) | 5550A |
| M140 | Warning lights and milometer control unit (NSO) |
