FUEL INJECTION PUMP (page 2 of 2) – Land Rover 300Tdi Engine

ENGINE

OVERHAUL

39

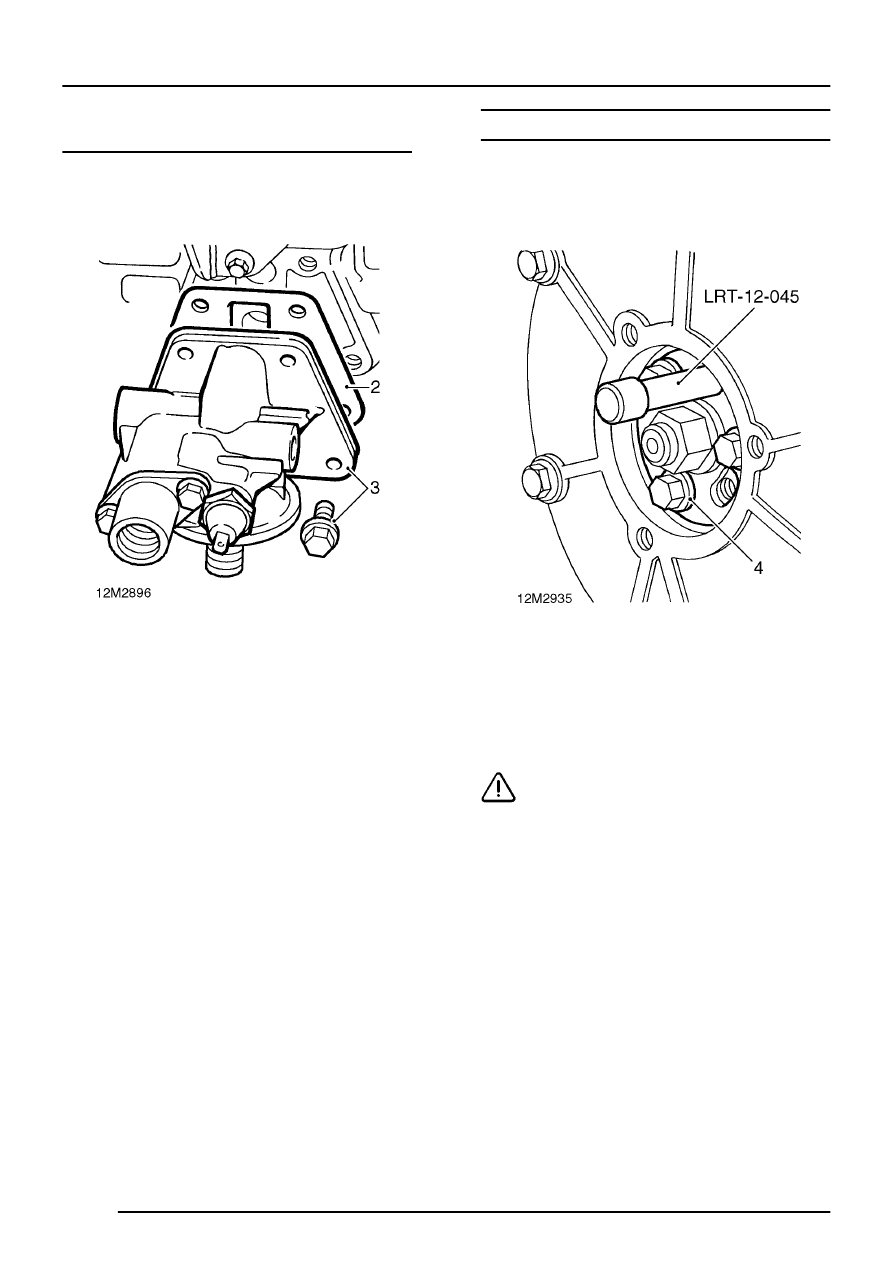

5. Remove 3 bolts securing mounting bracket and

baffle plate to cylinder block.

6. Remove 2 bolts securing mounting bracket to

injection pump, remove bracket.

7. Remove banjo bolt securing fuel spill return

pipe to injection pump, discard sealing
washers.

CAUTION: Plug open connections to
prevent ingress of dirt.

8. Remove 3 nuts securing injection pump to

timing belt rear cover, remove injection pump.
