OVERHAULRocker shaft - dismantling
Rocker shaft - dismantling – Land Rover 300Tdi Engine

ENGINE

12

OVERHAUL

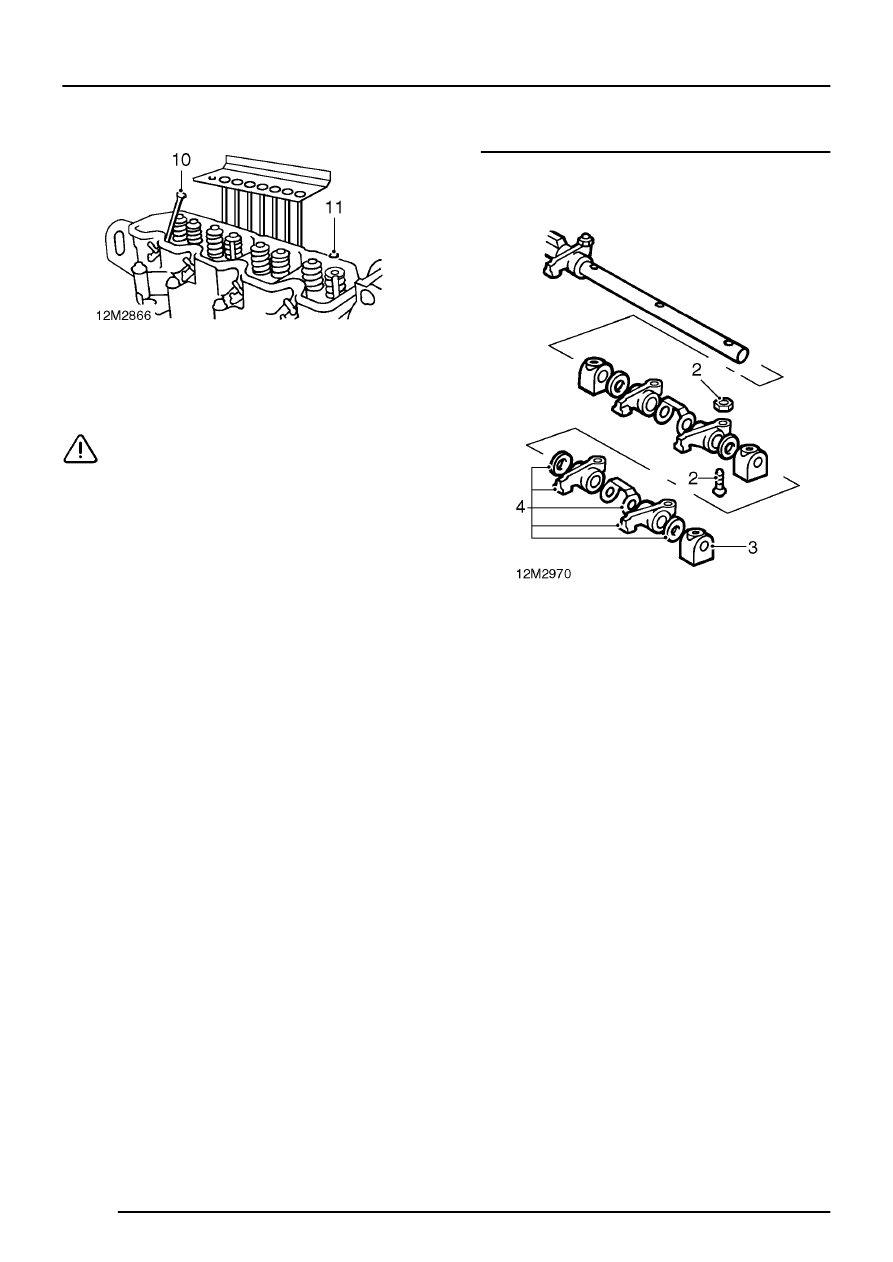

10. Withdraw push rods.
11. Remove valve caps.

CAUTION: Keep push rods and valve caps
in their fitted order.

Rocker shaft - dismantling

1. Suitably identify each component to its fitted

position.

2. Remove locknut and tappet adjusting screw

from each rocker.

3. Remove slave bolt and pedestal from end of

rocker shaft.

4. Remove washer, rocker arm and spacer

followed by second rocker arm, spacer and
pedestal.

5. Repeat above procedures until all components

are removed.
