Brake pedal refit

BRAKE PEDAL Refit

Service repair no - 70.35.01 - Brake pedal Service repair no - 70.35.03 - Pedal box

10. Fit pedal to pedal box, insert pivot shaft and

Remove

11. Attach return springs to pedal and pedal box
1. Remove brake servo assembly. See Brake servo assembly 12. Fit pedal box and gasket to engine bulkhead.

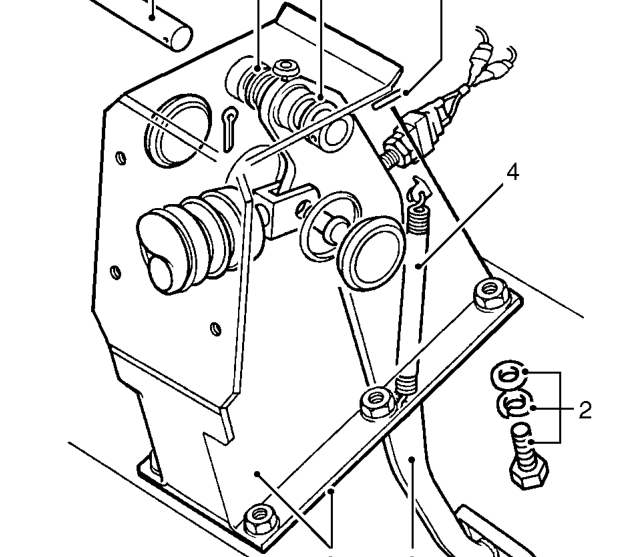

2. Remove 6 bolts securing pedal box to engine bulkhead. 13. Fit brake servo assembly.
3. Taking care not damage brake fluid pipes, remove pedal box assembly and gasket.

4. Release return springs from pedal and pedal box bosses.
5. Using a suitable punch, drift out retaining pin and withdraw pedal pivot shaft.
6. Remove brake pedal complete with pivot bushes.
7. Examine components for wear or damage, renew as necessary.
8. If it is necessary to fit new pivot bushes, they must be reamed out to 15,87 mm ± 0,02 mm, 0.625 ± 0.001 in after fitment.
9. Lubricate pedal pivot shaft and bushes with general purpose grease.

secure with new split pin.

bosses.

Tighten fixings to 25 Nm, 18 lbf/ft. See Brake servo assembly
