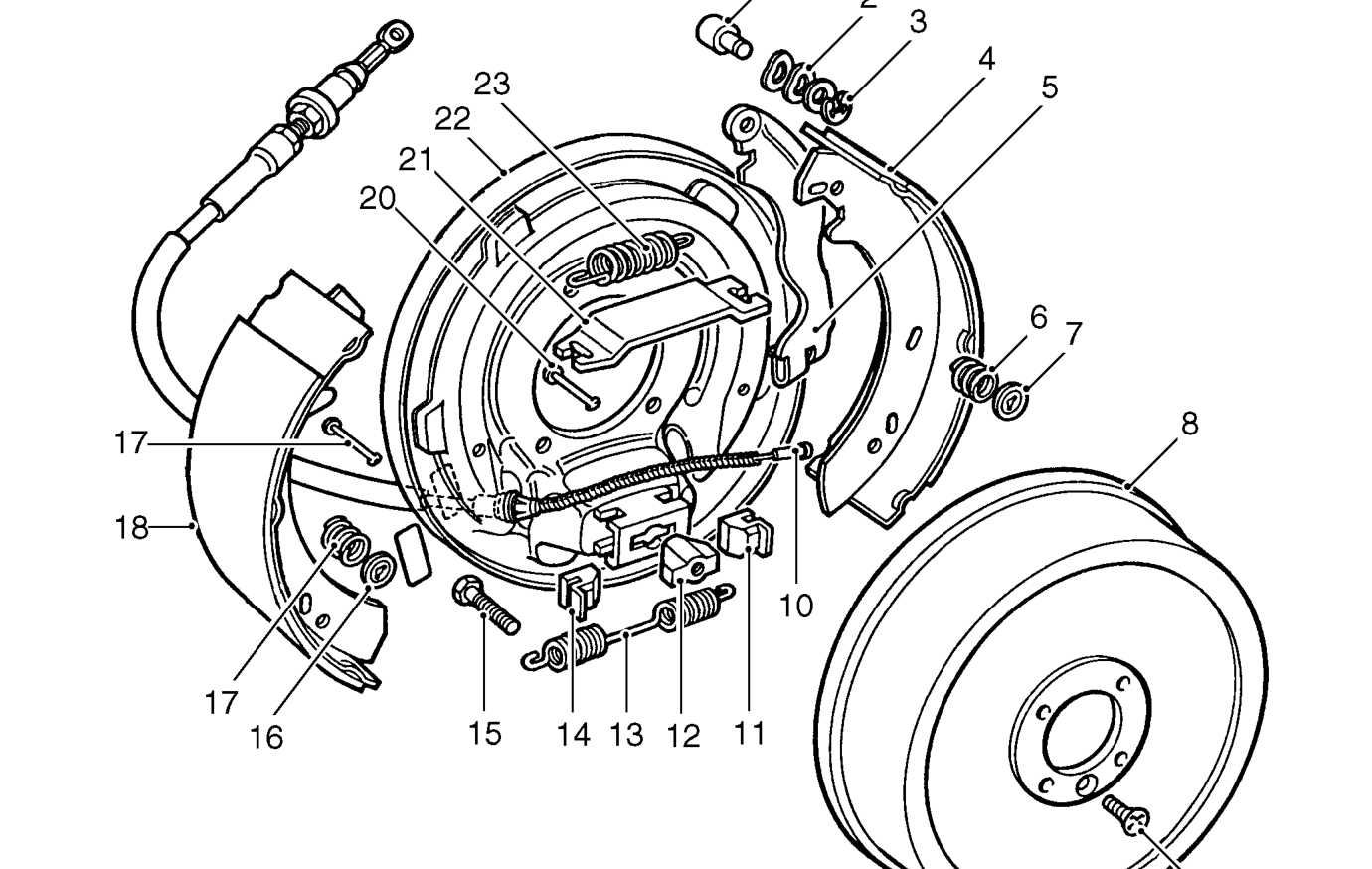

TRANSMISSION BRAKE

1. Pin 13. Spring
2. Washer 14. Adjuster slide
3. ’C’ clip 15. Adjuster bolt
4. Brake shoe 16. Dished washer
5. Cable lever 17. Hold down spring
6. Hold down spring 18. Brake shoe
7. Dished washer 19. Hold down pin
8. Brake drum 20. Hold down pin
9. Screw 21. Abutment plate
10. Brake cable 22. Back plate
11. Adjuster slide 23. Spring
12. Adjuster nut

20 Brakes
