Refit heater control cable - temperature control (page 2 of 2)

11. Release 2 retaining clips securing control cables
12. Pull control cable through bulkhead grommet

Refit

13. Fit control cable to heater flap lever trunnion with
14. Secure outer cable with retaining clip.
15. Route control cable through sealing grommet
16. Secure control cables to engine bulkhead with
17. With control lever in closed position, fit inner
18. Fit outer cable retaining clip and fully tighten
19. Fit side cover to control lever assembly. Ensure
20. Fit side cover to fascia.
21. Fit control lever knobs.
22. Fit instrument binnacle.

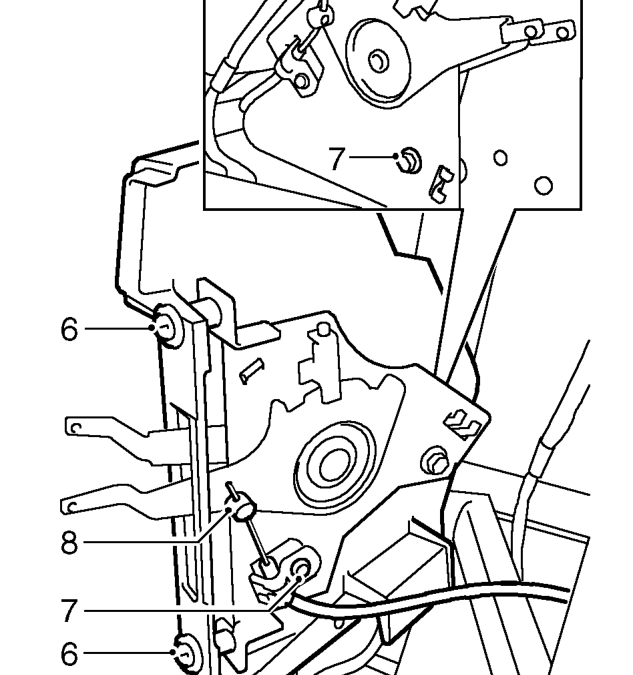

6. Remove 2 screws securing control lever 23. Reconnect battery. assembly to side cover and remove cover. Retain plastic screw spacers fitted between cover and control lever assembly.
7. Remove bolt and release outer cable retaining clip.
8. Slacken grub screw and release inner cable from clevis.

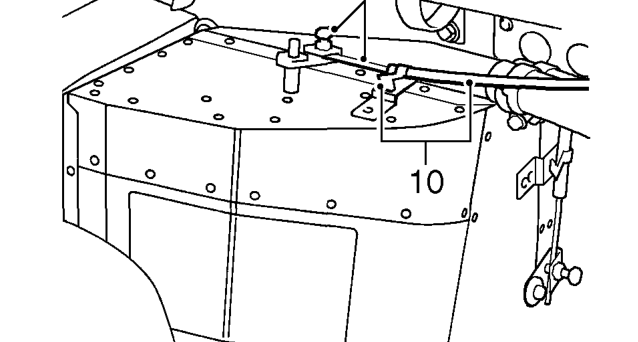

9. From inside engine compartment: Release outer cable retaining clip at heater unit.
10. Slacken trunnion fixing and release inner cable from heater unit flap lever.

to engine bulkhead.

and remove from vehicle.

approximately 10 mm, 0.4 in of inner cable protruding from trunnion. Fully tighten trunnion.

and along inside of engine bulkhead to fascia binnacle.

retaining clips.

cable to lever clevis and fully tighten clevis grub screw.

securing bolt.

fixing screw spacers are positioned between cover and lever assembly.
