Land Rover Defender V8i Workshop Manual Supplement18 · Chassis and body
18 · Body & interior

Lower fascia panel (heater duct) assembly (page 2 of 2)

Make
Land Rover
Model
Defender V8i Workshop Manual Supplement
Section
Repair
Chassis and bodyLower fascia panel (heater duct) assembly · page 2 of 2

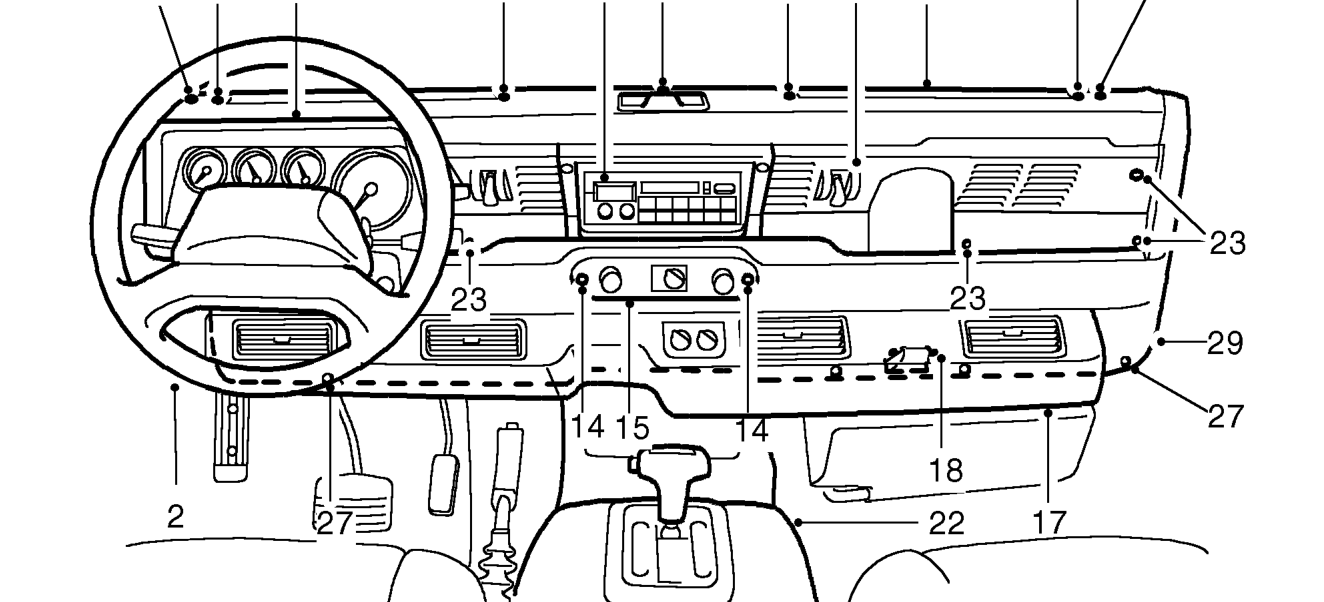

Diagram
  1. Remove 4 screws and remove both demister vents from crash pad.
  2. Remove 3 screws securing crash pad to fascia bulkhead.
  3. Remove crash pad.
  4. Remove radio. See ELECTRICAL, Repair, Radio
  5. Remove 2 screws, washers and nuts securing auxiliary switch panel to lower fascia panel and switch cover.
  6. Withdraw switch panel and disconnect harness leads.
  7. Remove 2 screws securing switch cover to parcel tray.

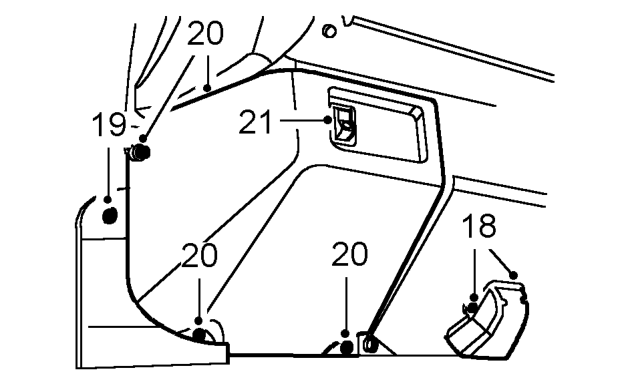

  8. Remove air conditioning fascia duct bezel. See AIR CONDITIONING, Repair, Fascia duct 19. Remove single screw and detach door check bezel
  9. If air conditioning is not fitted, remove 4 screws 20. Remove 3 screws securing wiper motor cover to and remove both footwell vents from lower fascia panel.
If air conditioning is not fitted, remove 4 screws 20. Remove 3 screws securing wiper moto

strap cover from LH and RH doors.

fascia bulkhead.
