300Tdi Defender
FUEL SYSTEM
15
REPAIR
TURBOCHARGER OIL DRAIN PIPE
Service repair no - 19.42.12
Remove
1. Disconnect battery.
2. Remove exhaust front pipe.
See MANIFOLD
AND EXHAUST SYSTEM, Repair, Exhaust
front pipe

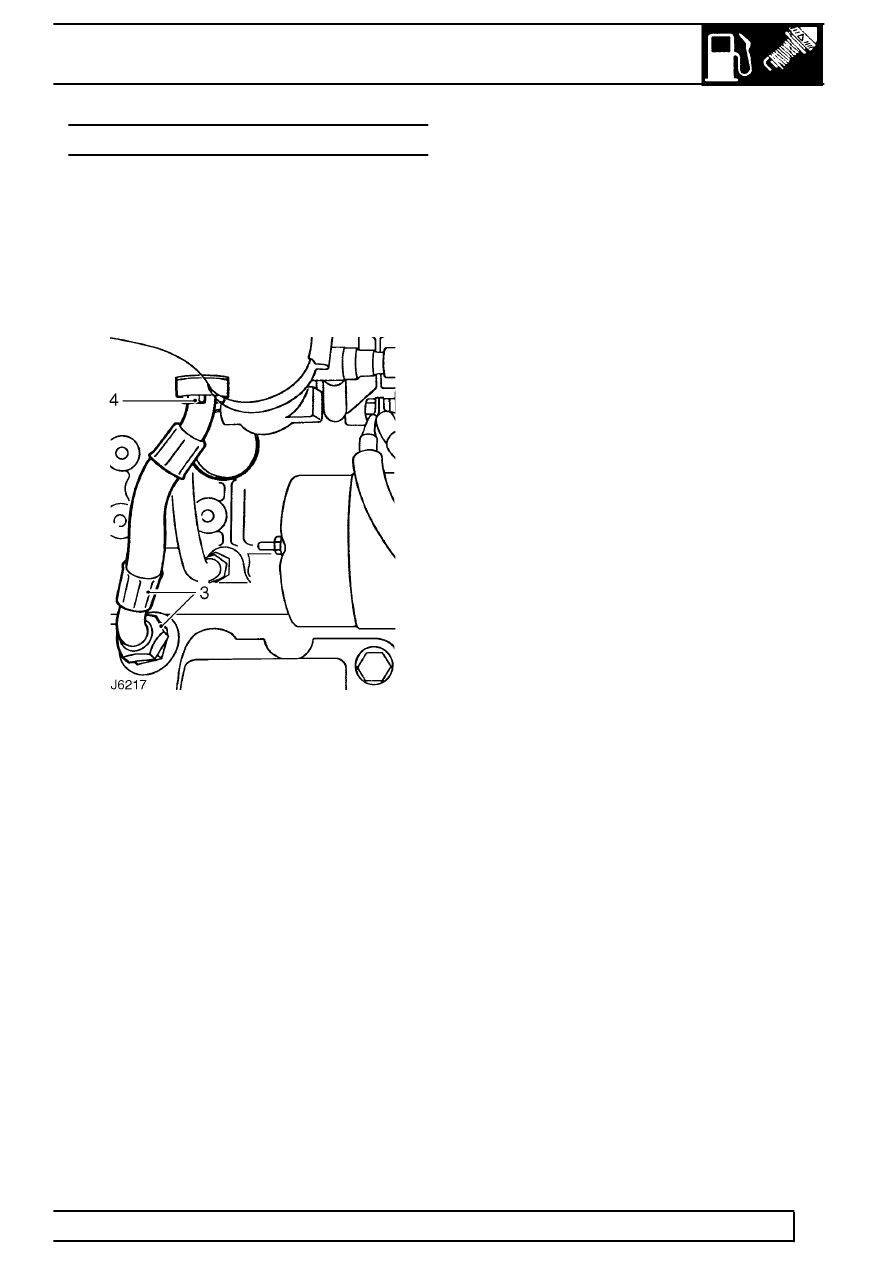

3. Unscrew union and disconnect oil drain pipe
from cylinder block.
4. Remove 2 bolts securing oil drain pipe to
turbocharger.
5. Remove drain pipe and discard gasket.
6. Plug connections to prevent ingress of dirt.
Refit
7. Ensure mating surfaces of oil pipe, turbocharger
and engine block are clean.
8. Using new gasket, fit oil drain pipe to
turbocharger. Tighten bolts to
25 Nm (18 lbf/ft).
9. Fit drain pipe to cylinder block and tighten union
connector to
38 Nm (28 lbf/ft).
10. Fit exhaust front pipe.
See MANIFOLD AND
EXHAUST SYSTEM, Repair, Exhaust front
pipe
11. Check/top-up engine oil level.
See SECTION
10, Maintenance, Under bonnet maintenance
12. Reconnect battery.
