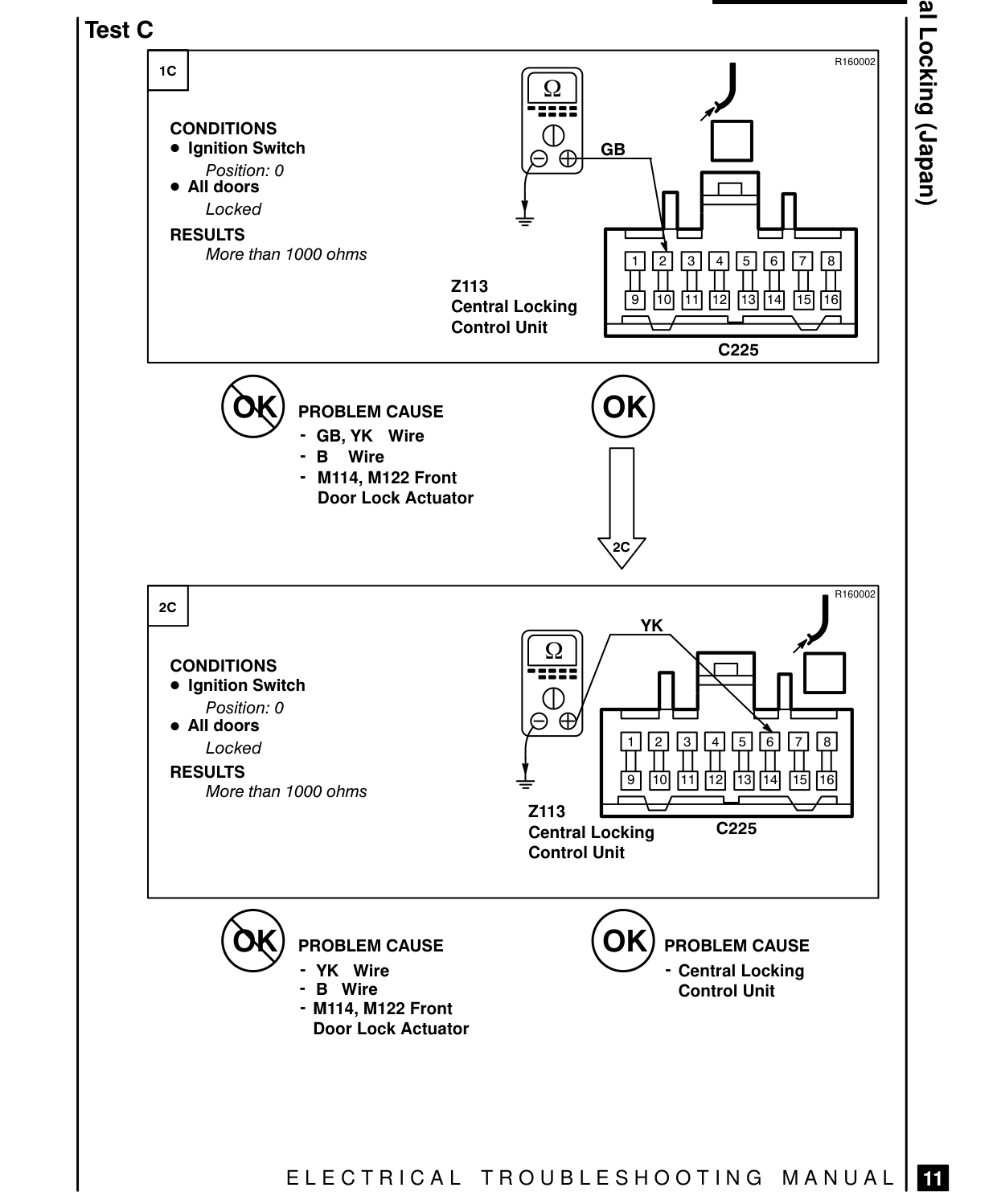

Central locking (Japan) – fault diagnosis

CENTRAL LOCKING (JAPAN) – FAULT DIAGNOSIS

Test C

CONDITIONS ® Ignition Switch e All doors Position: 0 RESULTS Locked

More than 1000 ohms Z113 Central Locking Control Unit

(59) PROBLEM CAUSE - GB, YK Wire Wire M114, M122 Front Door Lock Actuator

2c | 2c

CONDITIONS e Ignition Switch e All doors

More than 1000 ohms RESULTS

(59) PROBLEM CAUSE - YK Wire Wire - M114, M122 Front Door Lock Actuator

ELECTRICAL TROUBLESHOOTING MANUAL | ki

Oo R160002

GB OD

C1

INININININININI

C225

R160002 YK beged Nail OD nanaRneY [9] [7] [11] [72] [3] [4] [5] [re I A Z113 7 Central Locking C225 Control Unit

PROBLEM CAUSE - Central Locking Control Unit
