Cruise control – fault diagnosis

CRUISE CONTROL – FAULT DIAGNOSIS

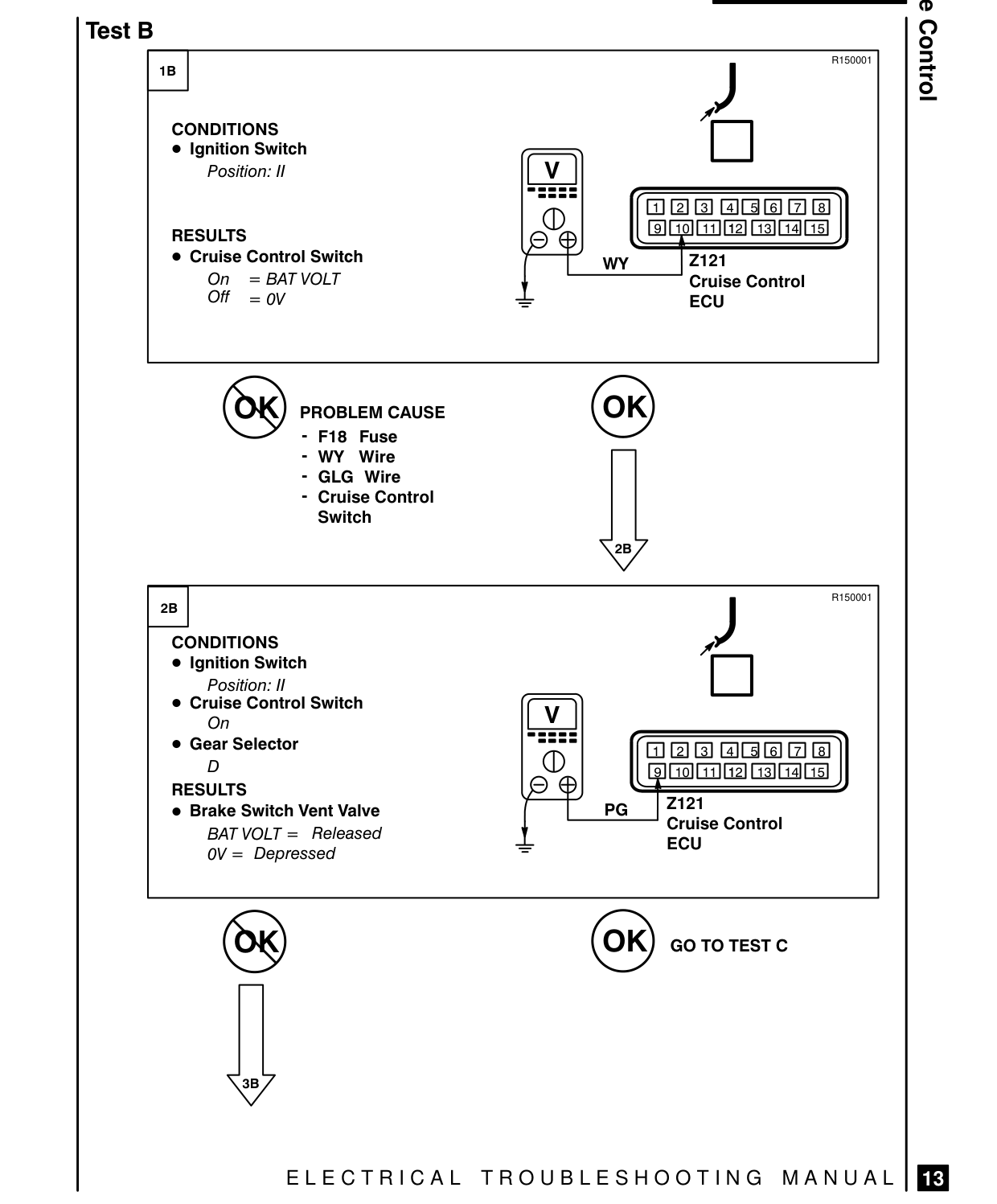

Test B

CONDITIONS ® Ignition Switch Position: Il

RESULTS ® Cruise Control Switch On = BATVOLT off =ov

(59) PROBLEM CAUSE F18 Fuse - WY Wire - GLG Wire - Cruise Control Switch

CONDITIONS e Ignition Switch Position: Il ® Cruise Control Switch On e Gear Selector

RESULTS e Brake Switch Vent Valve BAT VOLT = Released o0V = Depressed

(59)

ELECTRICAL TROUBLESHOOTING MANUAL | [iH

R150001

fo) } Gl HEE DE oO ® [oC] wy Z121 Cruise Control ECU

R150001

LV | OX SE] OP PG Z12] Control ECU ontro

GOTOTESTC
