Front wipe/wash – circuit diagram

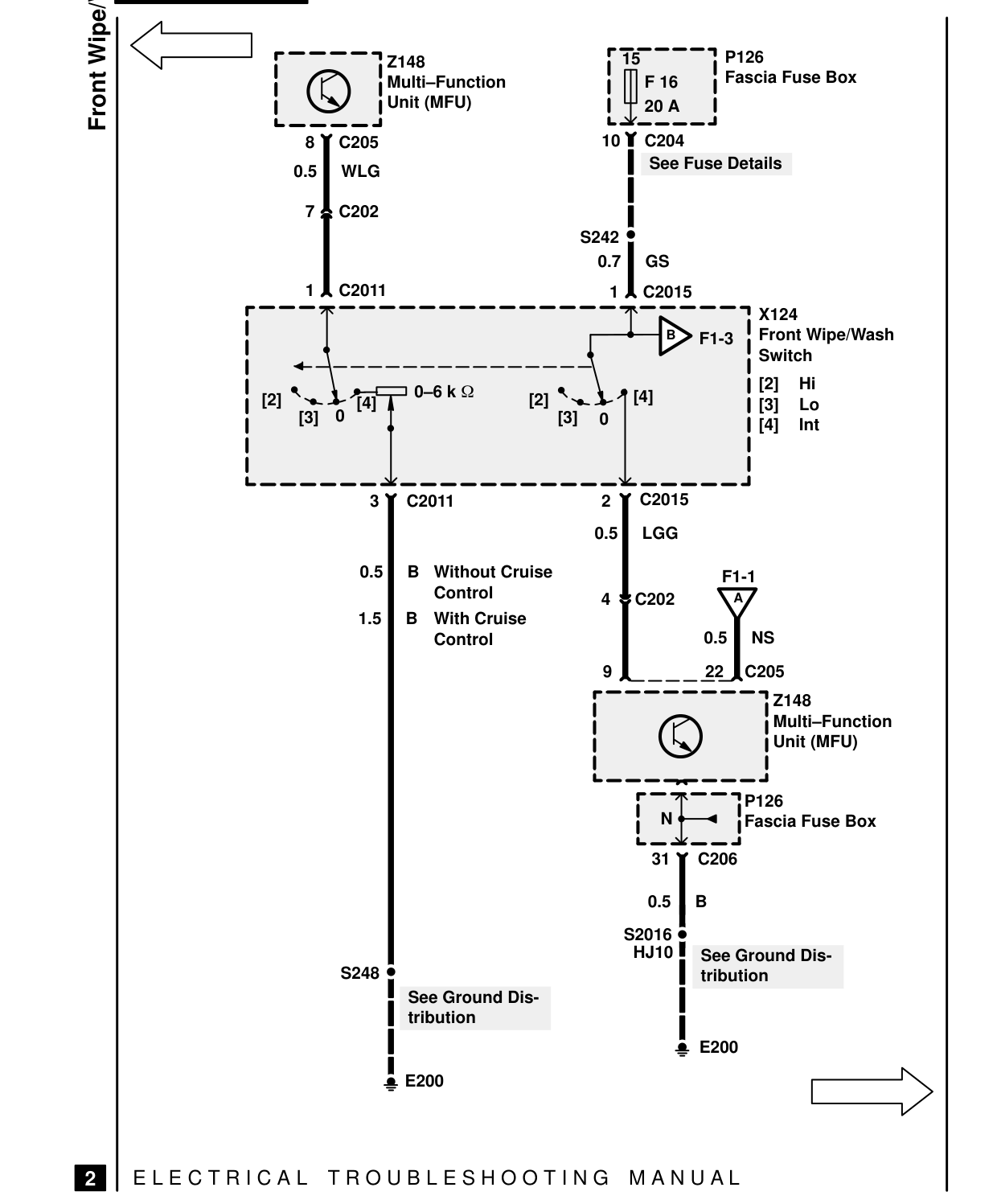

FRONT WIPE/WASH – CIRCUIT DIAGRAM

Front Wipe/Wash Z148 Multi-Function Unit (MFU)

8 C205 0.5 WLG

7 C202

1 C2011

0-6 k

[2] [4] 0 [3]

3 C2011

0.5 B Without Cruise Control With Cruise 1.5 B Control

S248 See Ground Dis- tribution

E200

E L E C T R I C A L T R O U B L E S H O O T I N G

2

P126 15 Fascia Fuse Box F 16 20 A

10 C204 See Fuse Details

S242 0.7 GS 1 C2015 X124 Front Wipe/Wash B F1-3 Switch [2] Hi [4] [2] [3] Lo [3] 0 [4] Int

C2015 2 0.5 LGG

F1-1 4 C202 A

0.5 NS

9 22 C205 Z148 Multi-Function Unit (MFU)

P126 N Fascia Fuse Box

31 C206

0.5 B S2016 HJ10 See Ground Dis- tribution

E200
