Circuit diagram › Instruments – circuit diagram

InstrumentsInstruments – circuit diagram

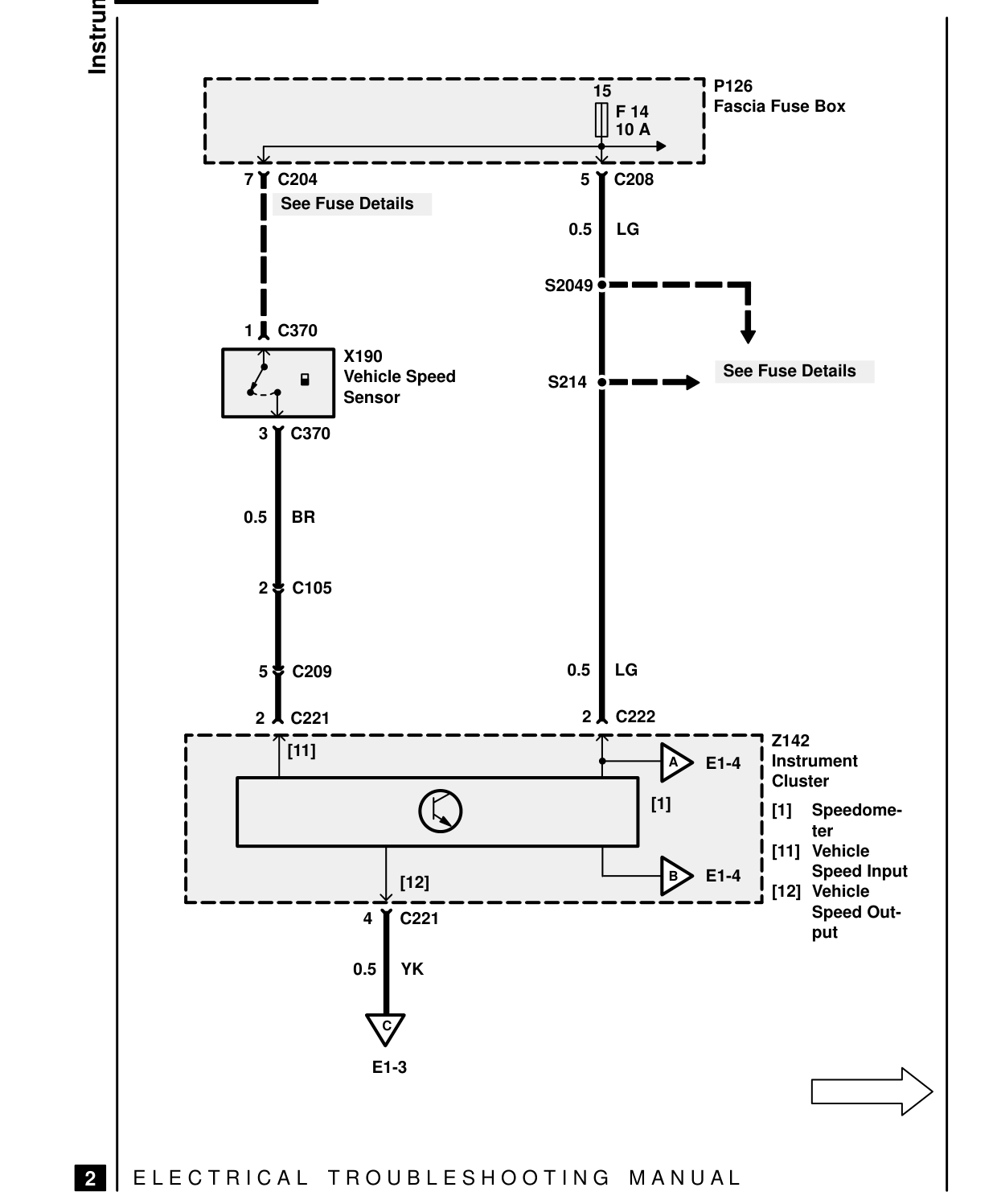

INSTRUMENTS – CIRCUIT DIAGRAM

Instruments

7 C204 See Fuse Details

1 C370 X190 Vehicle Speed Sensor

3 C370

0.5 BR

2 C105

5 C209

2 C221 [11]

[12]

4 C221

0.5 YK

C

E1-3

E L E C T R I C A L T R O U B L E S H O O T I N G

2

P126 15 Fascia Fuse Box F 14 10 A

5 C208

0.5 LG

S2049

See Fuse Details S214

0.5 LG

2 C222 Z142 Instrument E1-4 A Cluster [1] [1] Speedome- ter [11] Vehicle Speed Input E1-4 B [12] Vehicle Speed Out- put

M A N U A L

10 Electrical
