Power distribution – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Power distribution – circuit diagram

Power distributionPower distribution – circuit diagram

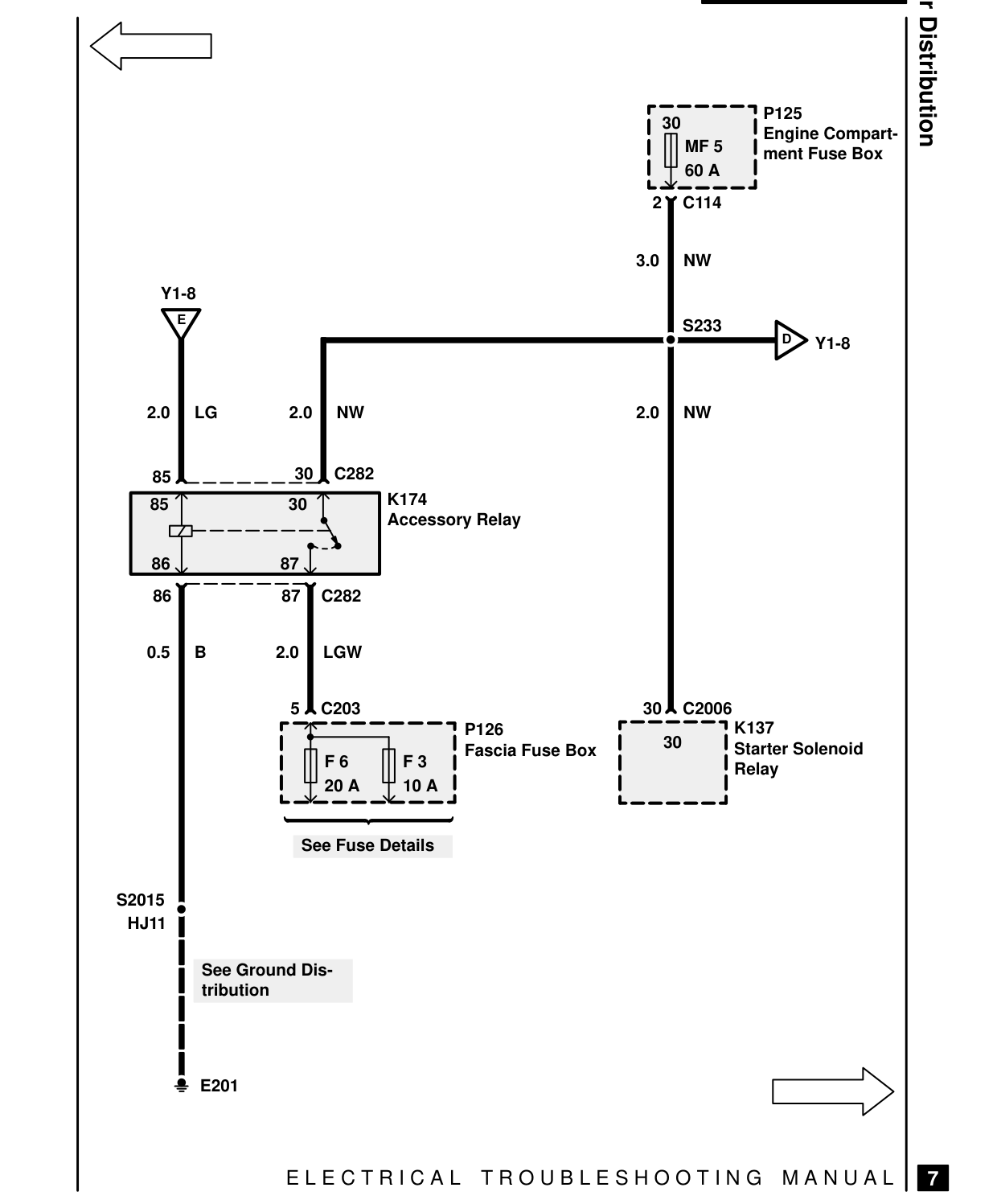

POWER DISTRIBUTION – CIRCUIT DIAGRAM

Y1-8 E

2.0 NW 2.0 LG

30 C282 85 K174 85 30 Accessory Relay

86 87 87 C282 86

2.0 LGW 0.5 B

5 C203 P126 Fascia Fuse Box F 6 F 3 20 A 10 A

See Fuse Details

S2015 HJ11

See Ground Dis- tribution

E201

E L E C T R I C A L

Power Distribution P125 30 Engine Compart- MF 5 ment Fuse Box 60 A 2 C114

3.0 NW

S233 D Y1-8

2.0 NW

30 C2006 K137 30 Starter Solenoid Relay

T R O U B L E S H O O T I N G M A N U A L

7

38 General
