REAR WIPE/WASH – FAULT DIAGNOSIS

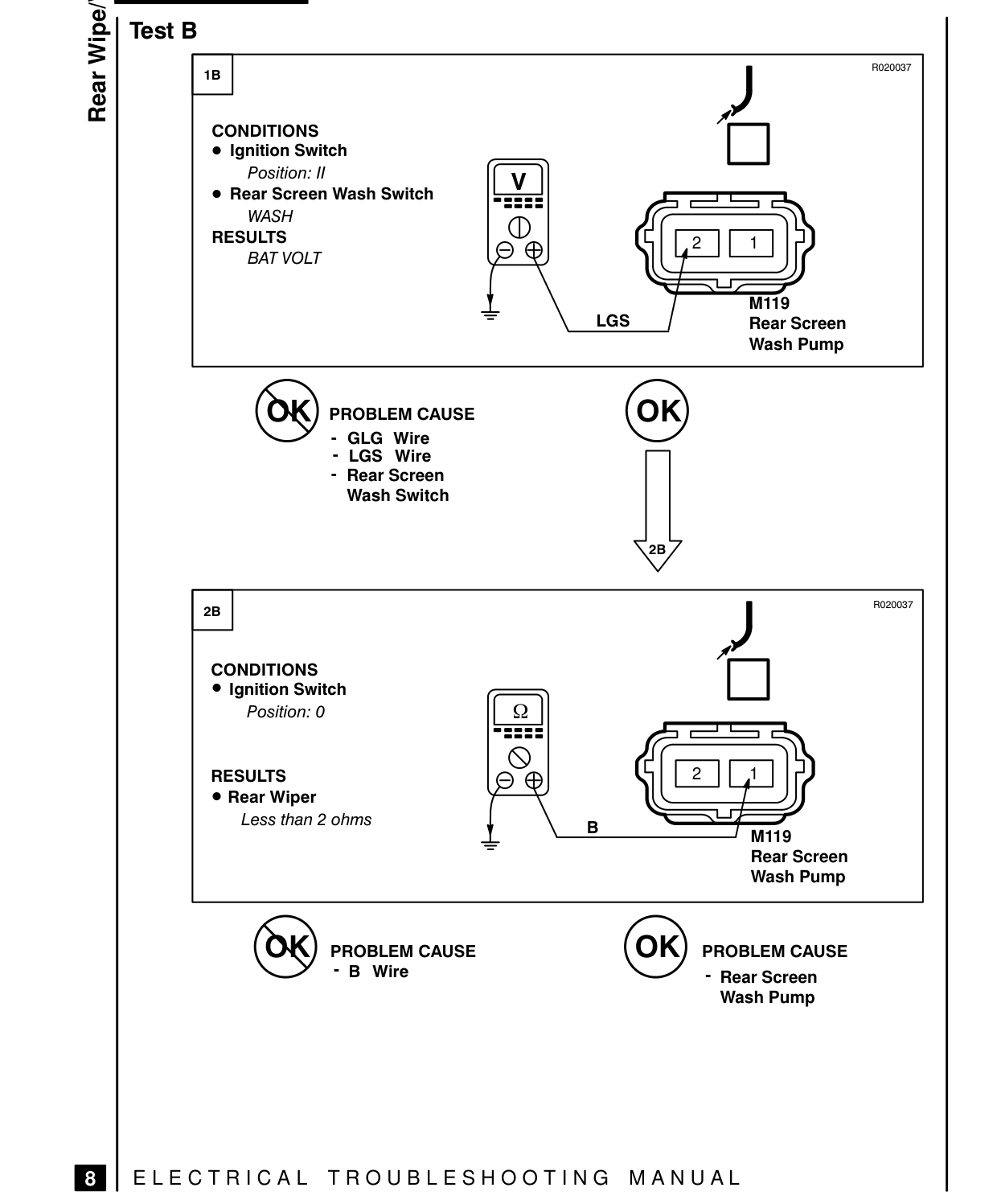

Test B

0c CONDITIONS ® Ignition Switch Position: II ® Rear Screen Wash Switch WASH RESULTS BAT VOLT

(5) PROBLEM CAUSE - GLG Wire - LGS Wire Rear Screen Wash Switch

2s | CONDITIONS ® Ignition Switch Position: 0

® Rear Wiper Less than 2 ohms

(59) PROBLEM CAUSE - B Wire

EJ | ELECTRICAL TROUBLESHOOTING MANUAL

SKS

NL M119 LGS Rear Screen Wash Pump

R020037

M119 Rear Screen Wash Pump

PROBLEM CAUSE - Rear Screen Wash Pump
