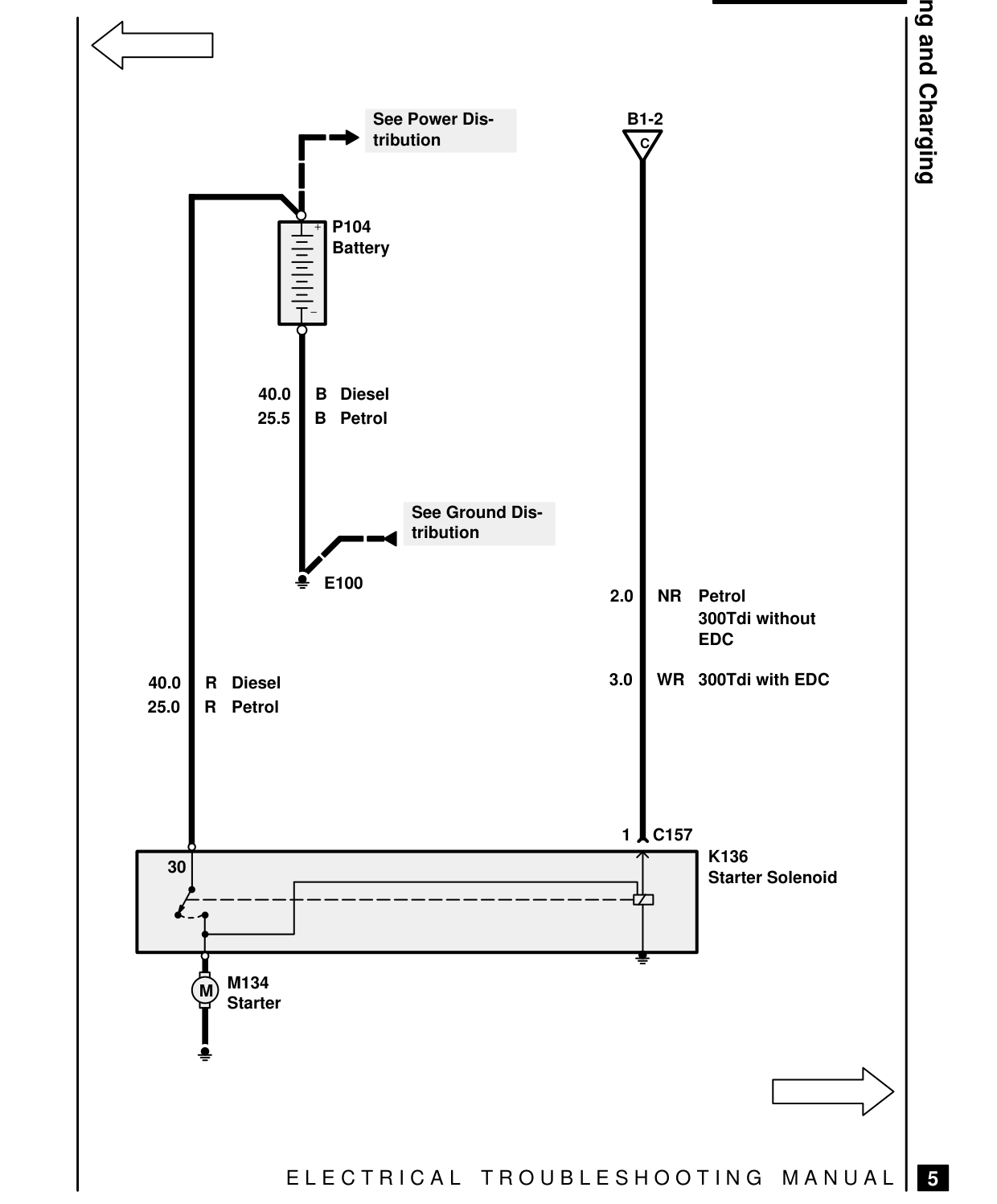

STARTING AND CHARGING – CIRCUIT DIAGRAM

See Power Dis- tribution

P104

Battery



40.0 B Diesel 25.5 B Petrol

See Ground Dis- tribution

E100

40.0 R Diesel 25.0 R Petrol

30

M134

Starter

E L E C T R I C A L

Starting and Charging B1-2 C

2.0 NR Petrol 300Tdi without EDC

3.0 WR 300Tdi with EDC

1 C157 K136 Starter Solenoid

T R O U B L E S H O O T I N G M A N U A L

5

06 Electrical
