Stop lamps – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Stop lamps – circuit diagram

Stop lampsStop lamps – circuit diagram

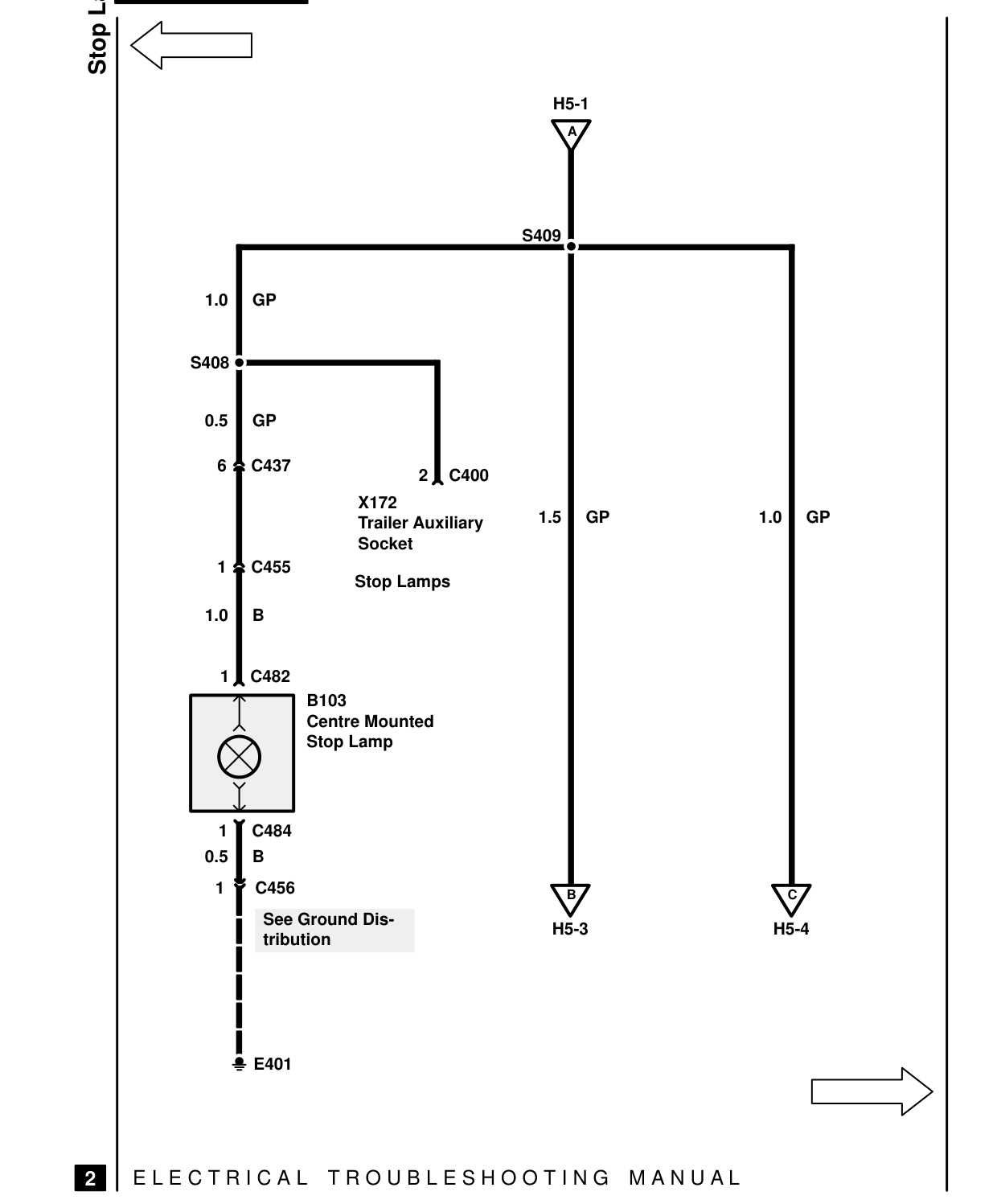

STOP LAMPS – CIRCUIT DIAGRAM

Stop Lamps

1.0 GP

S408

0.5 GP

6 C437

X172 Trailer Auxiliary Socket 1 C455 Stop Lamps

1.0 B

C482 1 B103 Centre Mounted Stop Lamp

1 C484 0.5 B 1 C456 See Ground Dis- tribution

E401

E L E C T R I C A L T R O U B L E S H O O T I N G

2

H5-1 A

S409

2 C400

1.5 GP 1.0 GP

B C

H5-3 H5-4

M A N U A L

22 General
