Discovery II
DOORS
76-1-8
REPAIRS

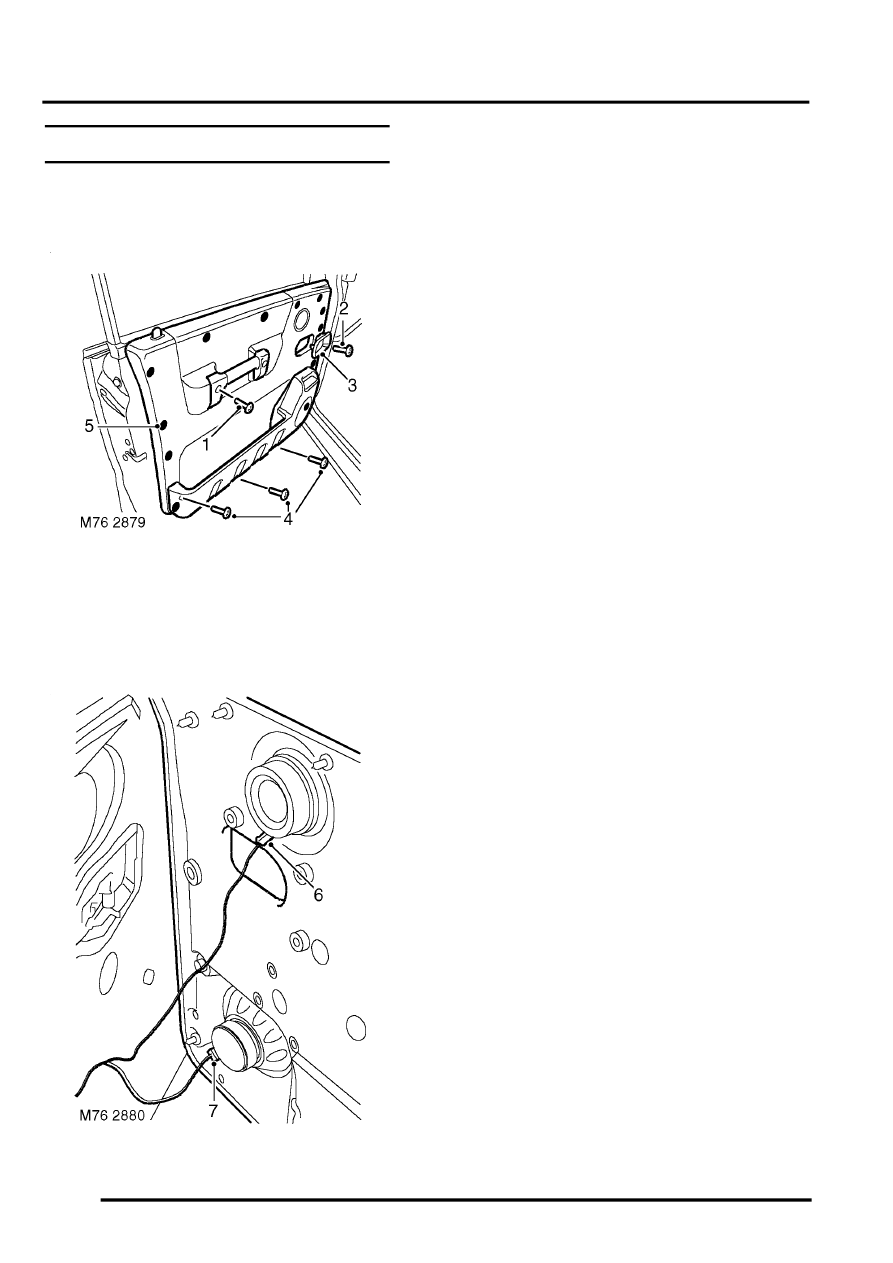

Trim casing - front door
$% 76.34.01.99
Remove
1. Remove 2 screws securing hand rail to door.
2. Remove screw securing door handle
escutcheon to door.
3. Remove escutcheon.
4. Remove 4 screws securing pocket to door.
5. Carefully release 10 clips securing trim casing
to door.
6. If fitted, disconnect multiplug from upper door
speaker.
7. Disconnect multiplug from lower door speaker.
8. Remove trim casing from door.
Refit
1. Position trim casing to door and connect door
speaker multiplug(s).
2. Secure trim casing to door with clips.
3. Fit escutcheon to door handle and secure with
screw.
4. Fit hand rail to door and secure with screws.
5. Fit pocket to door and secure with screws.
