Discovery II
ENGINE MANAGEMENT SYSTEM - V8
REPAIRS 18-2-95
Vacuum control unit - from 03MY
$% 19.75.06
Remove

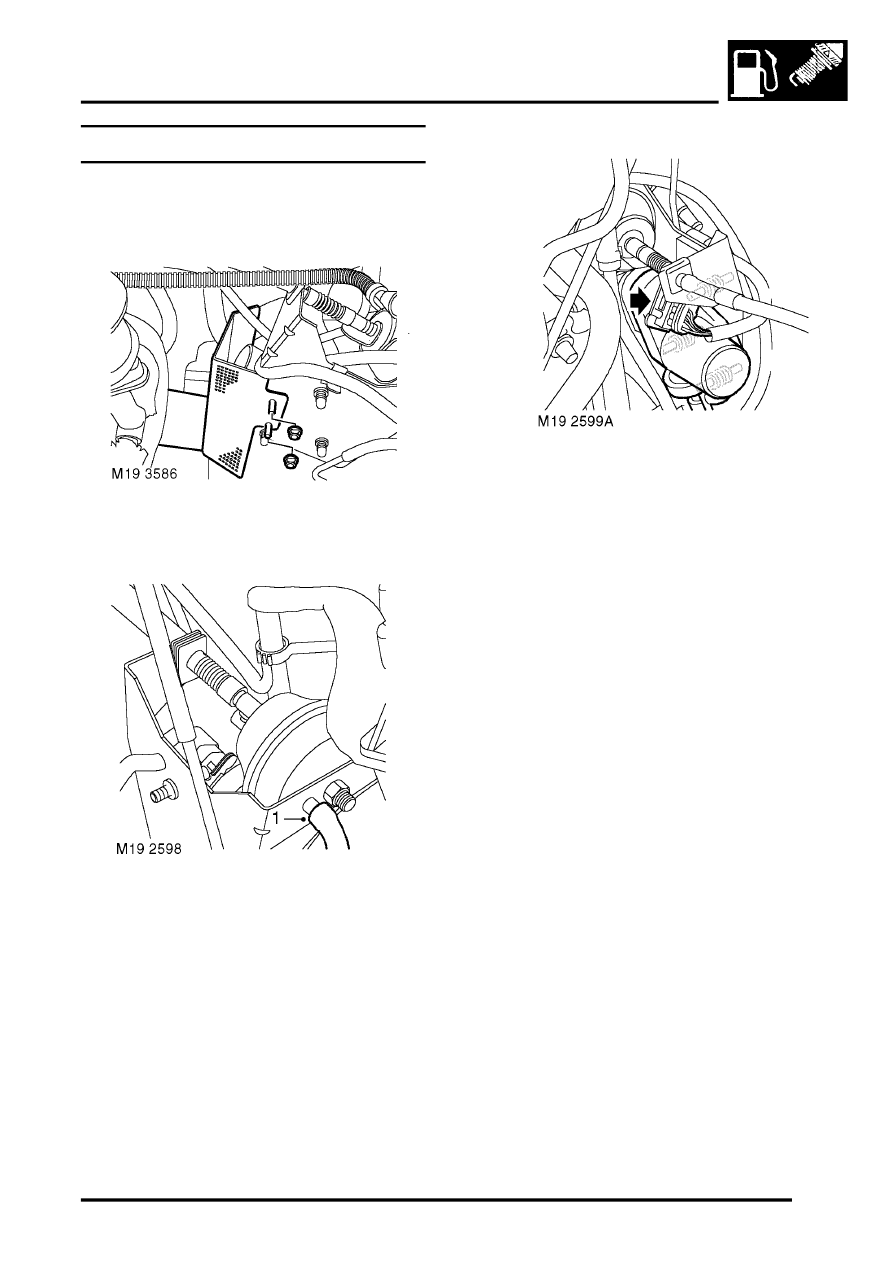

1. If fitted: Remove 2 nuts securing heat shield
and remove heat shield.
2. Disconnect vacuum hose from actuator.
3. Disconnect multiplug from control unit.
4. Release 3 rubber mounting securing control
unit to mounting bracket and remove control
unit.
Refit
1. Position control unit and secure mountings.
2. Connect multiplug and vacuum hose.
3. If fitted: Fit heat shield, fit nuts and tighten to
10 Nm (7 lbf.ft).
