12. Remove bolt securing power steering pump to mounting bracket.

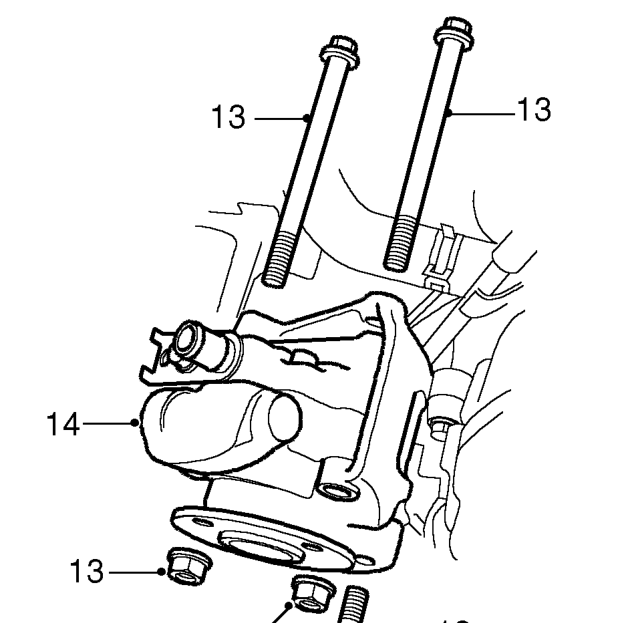

13. Remove 2 through bolts and nuts securing power steering pump to mounting bracket.
14. Remove power steering pump.

CAUTION: Plug the connections.

Refit

1. Remove plugs from hose connections on new power steering pump and fit to old pump.
2. Position power steering pump and align to mounting bracket.
3. Fit nuts and bolts securing power steering pump to mounting bracket and tighten to 25 Nm.
4. Fit pulley to power steering pump and tighten bolts finger tight.
5. Remove plug from fluid outlet hose.
6. Lubricate and fit NEW ’O’ ring to fluid outlet hose.
7. Loosely connect fluid outlet hose to power steering pump.
8. Align fluid outlet hose clamp to bracket and secure with bolt.

CAUTION: To prevent damage to components, use two spanners when loosening or tightening unions.

9. Tighten fluid outlet hose to 25 Nm.
10. Remove plug from fluid inlet hose and connect to power steering pump.
11. Fit clip securing fluid inlet hose to power steering pump.
12. Remove drain tin.
13. Fit power steering pump drive belt.
14. Tighten pulley bolts to 9 Nm.
15. Bleed power steering system, see Adjustments.
