Engine - K Series KV6Crankshaft Oil Supply

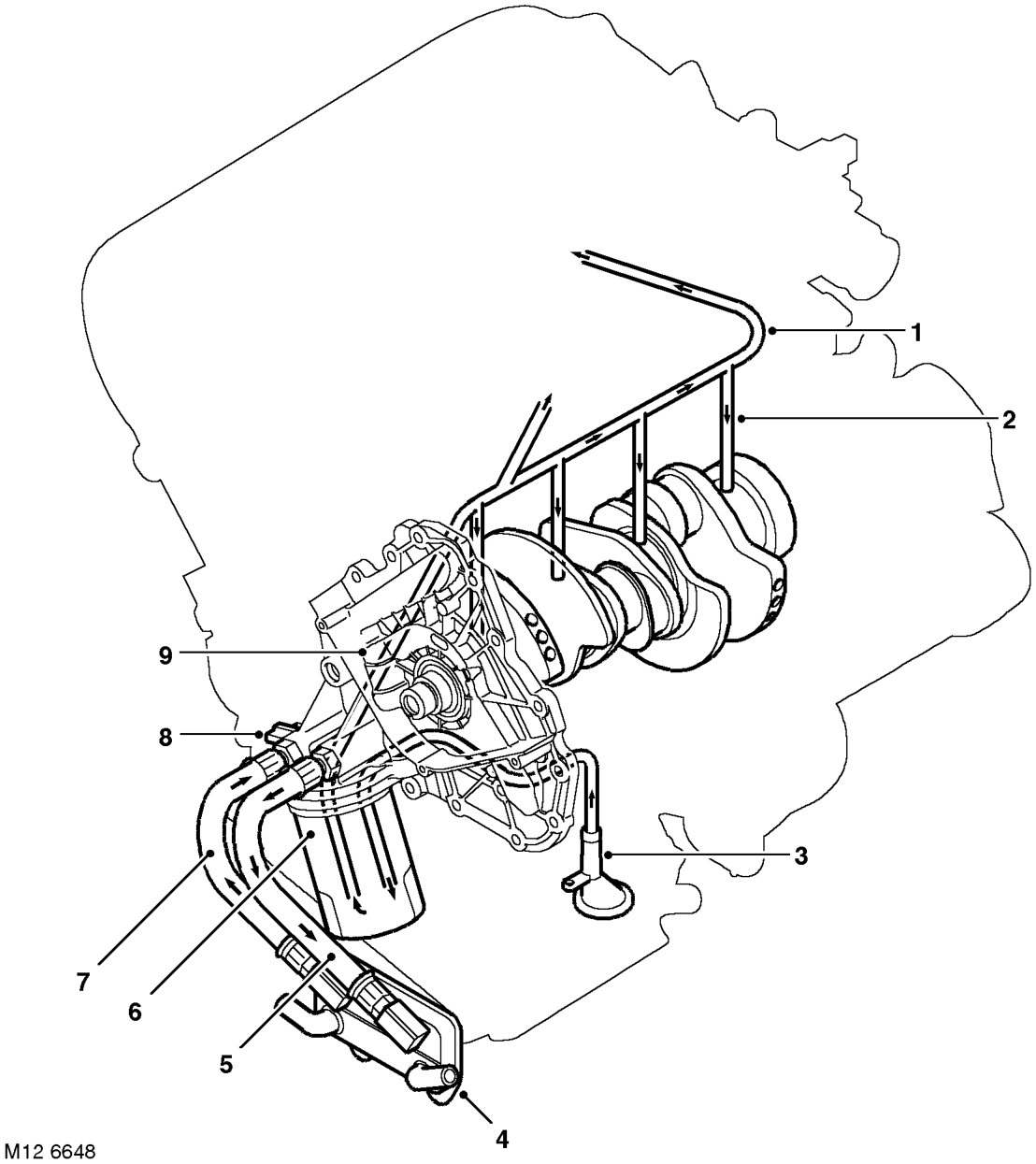

Crankshaft Oil Supply
1 Cylinder block main oil gallery 2 Cross drillings to crankshaft main bearings 3 Oil pick-up pipe with integral strainer 4 Oil cooler 5 Oil cooler supply pipe
6 Oil filter cartridge 7 Oil cooler return pipe 8 Oil pressure switch 9 Oil pump with integral oil pressure relief valve
