KV6 Engine – Cylinder Block Components (Engine - K Series KV6)

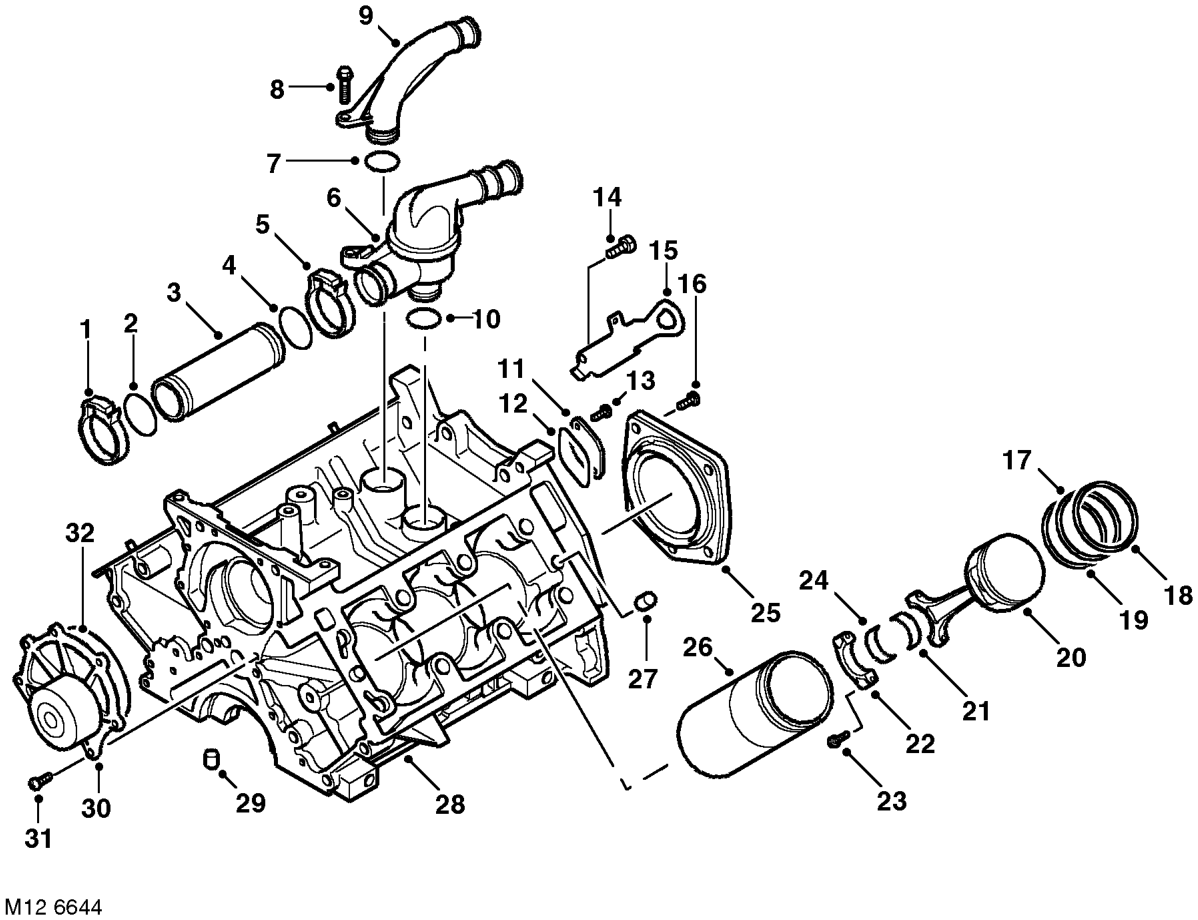

KV6 Engine – Cylinder Block Components

1 Clip – coolant pump to thermostat pipe 2 'O' ring – coolant pump to thermostat pipe 3 Pipe – coolant pump to thermostat 4 'O' ring – coolant pump to thermostat pipe 5 Clip – coolant pump to thermostat pipe 6 Thermostat housing 7 'O' ring – coolant outlet elbow to cylinder block 8 Bolt – coolant outlet elbow to cylinder block 9 Coolant outlet elbow 10 'O' ring – thermostat housing to cylinder block 11 Blanking plate – coolant outlet 12 Seal – blanking plate 13 Screw – blanking plate (2 off) 14 Bolt – engine lifting bracket, rear (2 off) 15 Engine lifting bracket – rear 16 Screw – crankshaft rear oil seal (5 off) 17 2nd compression ring

18 Top compression ring 19 Oil control ring 20 Piston 21 Big-end upper bearing shell 22 Big-end bearing cap 23 Bolt – big-end bearing cap to connecting rod (2 off per piston) 24 Big-end lower bearing shell 25 Crankshaft rear oil seal 26 Cylinder liner (6 off) 27 Dowel – cylinder block to cylinder head (4 off) 28 Cylinder block 29 Dowel – cylinder block to lower crankcase (4 off) 30 Engine coolant pump 31 Screw – coolant pump to cylinder block (7 off) 32 Seal – coolant pump to cylinder block
