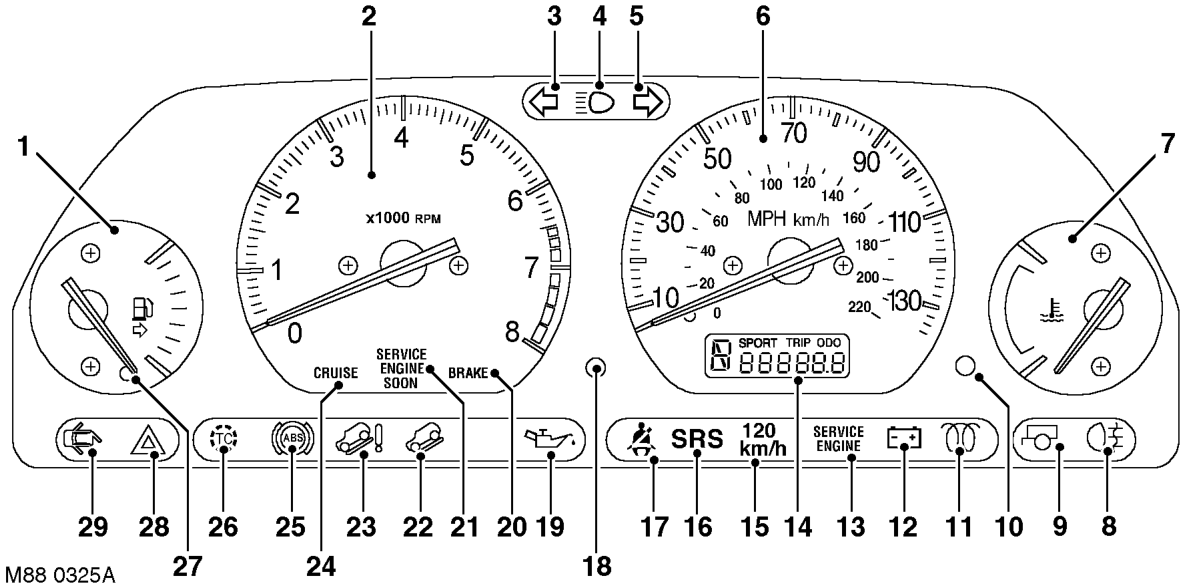

Instrument Pack Component Location - Front View (NAS Only)
1 Fuel level gauge 2 Tachometer 3 LH direction indicator warning lamp 4 Headlamp main beam warning lamp 5 RH direction indicator warning lamp 6 Speedometer (USA version shown) 7 Engine coolant temperature gauge 8 Rear fog lamp warning lamp 9 Trailer direction indicator/hazard failure warning lamp 10 Trip counter reset button 11 Not used 12 Ignition/No charge warning lamp 13 Engine malfunction warning lamp (Service Engine) 14 Liquid Crystal Display (LCD) 15 Not used
16 Supplementary Restraint System (SRS) warning lamp 17 Not used 18 Alarm LED 19 Low oil pressure warning lamp 20 Handbrake and brake system warning lamp 21 Malfunction Indicator Lamp (MIL) (Service Engine Soon) 22 Hill Descent Control (HDC) active warning lamp 23 HDC failure warning lamp 24 Cruise control active warning lamp (if fitted) 25 Anti-lock Braking System (ABS) warning lamp 26 Traction Control (TC) active warning lamp 27 Low fuel level warning lamp 28 Hazard flasher warning lamp 29 Door open warning lamp
