Rear Door Windows

Rear Door Windows

The rear window regulator and motor is supplied as an assembly and is handed. Each assembly comprises a runner, a continuous cable and a motor.

The runner is secured in the door frame with four bolts. The door glass is located in a carrier located in a track in the runner. The glass is retained in friction pads in the carrier and secured with a clamp screw.

The carrier is attached to the cable which, in turn, is attached to a drum driven by the motor. When the motor is operated, the drum pulls the cable in the required direction to raise or lower the glass.

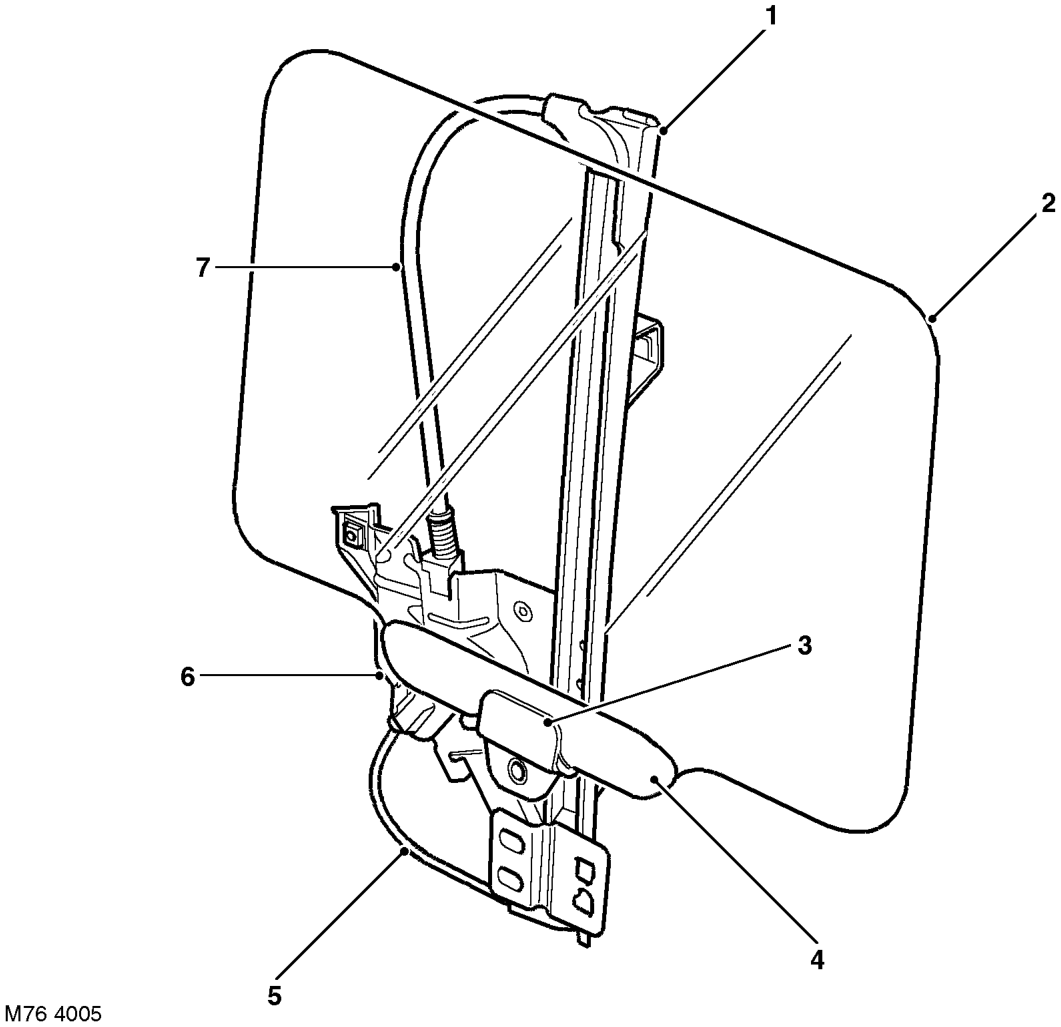

Rear Door Window Regulator

RH regulator shown, LH similar

1 Runner 2 Window glass 3 Friction pad 4 Carrier

5 Cable 6 Motor and regulator 7 Cable
