Tail Door Window (Windows)

Tail Door Window

The tail door window regulator comprises left and right hand runners, a continuous cable and a motor. The runners are secured in the tail door frame with four screws. The glass is located in two carriers which are located in tracks in the runners. The glass is retained in friction pads in each carrier and secured with clamp screws.

Each carrier is attached to the cable which, in turn, is attached to a drum driven by the motor. When the motor is operated, the drum pulls the cable in the required direction to raise or lower the glass.

The motor incorporates a movement sensor that supplies a position feedback signal to the CCU.

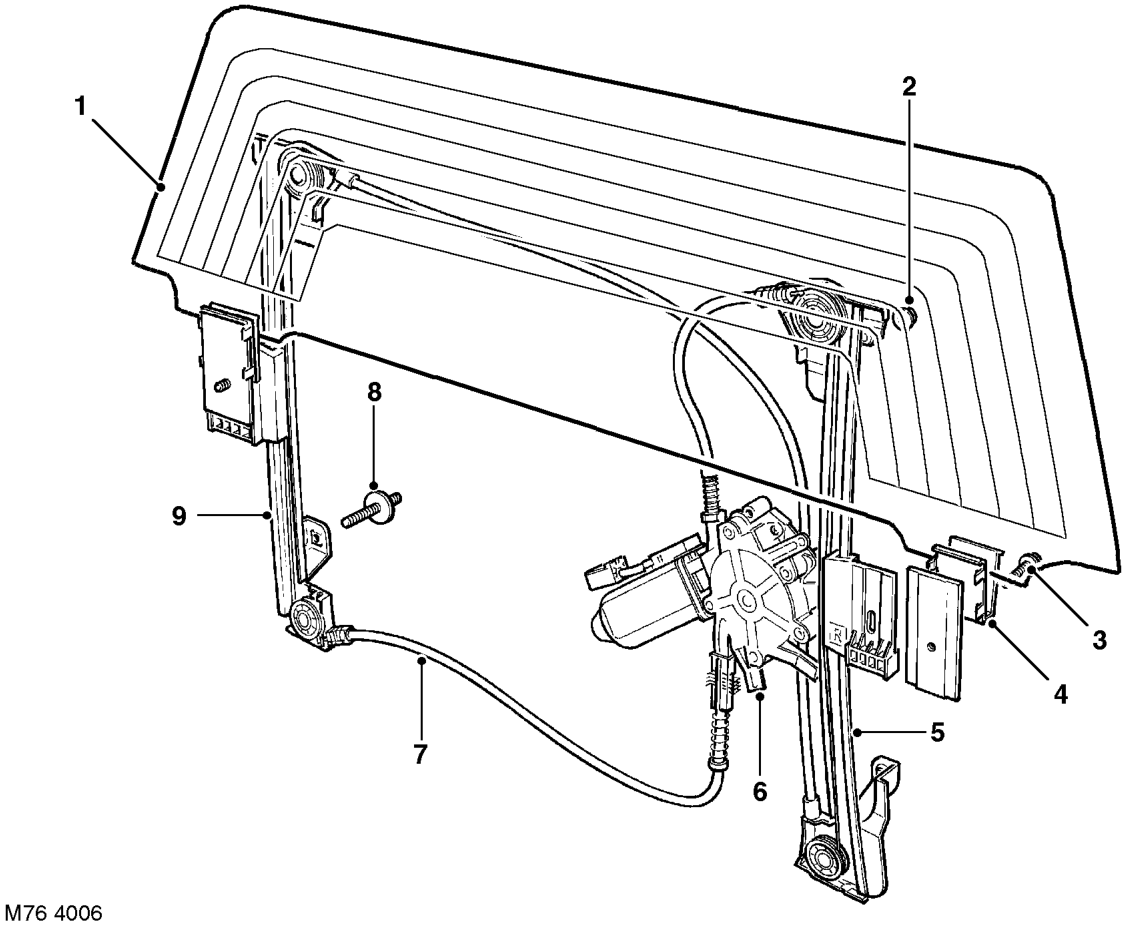

Tail Door Window Regulator

1 Tail door glass 2 Nut (3 off) 3 Clamp screw (2 off) 4 Friction pad (2 off) 5 RH runner

6 Motor 7 Cable 8 Mounting screw (4 off) 9 LH runner

Window Lift ECU

The window lift ECU provides 'one shot' opening of the driver's door window. Instead of the window switch being connected direct to the window motor, as on the other side door(s), the driver's door window switch is connected to the window motor via the window lift ECU. The window lift ECU is installed on the driver's side A post, level with the lower edge of the fascia.
