BodyCable - bonnet release

CABLE - BONNET RELEASE

Service repair no - 76.16.29

Remove

  1. Remove front grille. See this section.

Models with air conditioning:

  1. Remove condenser. See AIR CONDITIONING, Repairs.

All models:

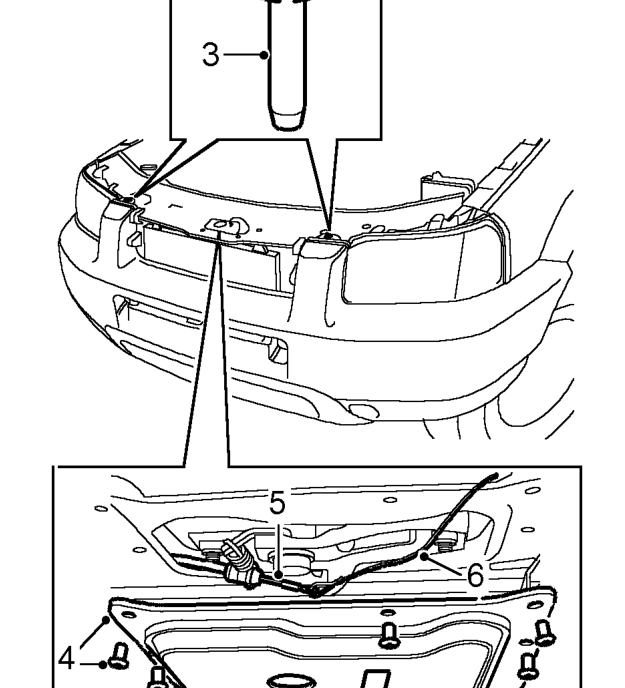

All models: – Remove condenser. See AIR CONDITIONING, Repairs.
  1. Remove radiator threaded retainers from bonnet locking platform.
  2. Drill out 5 rivets and remove bonnet bonnet latch shield.
  3. Disconnect bonnet release cable from lock.
  4. Tie a draw string to end of bonnet release cable and pull cable from bonnet locking platform.
  5. Untie draw string.
  6. Remove 3 cable ties securing bonnet release cable to main harness.

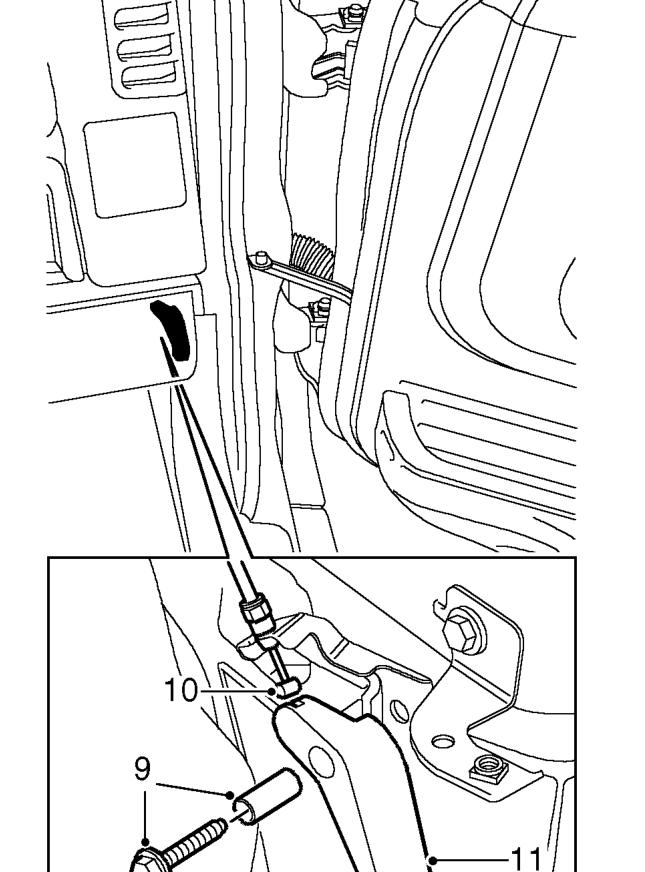

All models: – Remove 3 cable ties securing bonnet release cable to main harness.
  1. Remove bolt securing bonnet release lever to ’A’ post lower panel.
  2. Remove bonnet release cable from lever.
  3. Remove release lever.
