Panel - underbelly

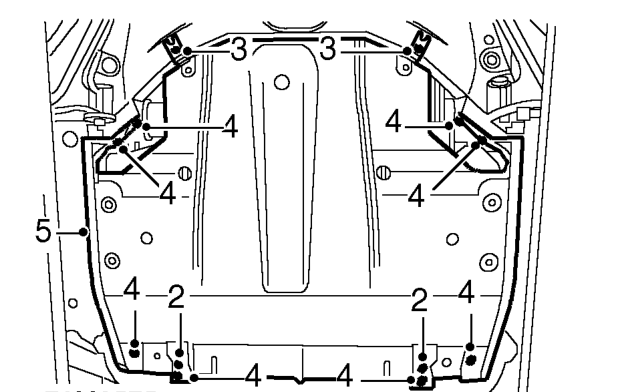

PANEL - UNDERBELLY

Service repair no - 76.10.50

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove 2 screws securing bumper valance to underbelly panel brackets.
3. Remove 2 bolts securing rear of underbelly panel.
4. Remove 8 bolts securing underbelly panel frame.
5. Remove underbelly panel.

Refit

1. Position underbelly panel to vehicle.
2. Fit bolts securing frame and tighten to 45 Nm.
3. Fit bolts securing rear of panel and tighten to 8 Nm.
4. Fit screws securing bumper valance to brackets.
5. Remove stand(s) and lower vehicle.

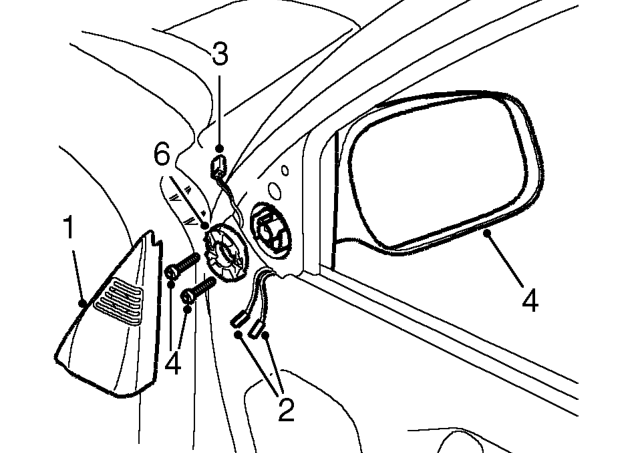

MIRROR - EXTERIOR - ELECTRIC

Service repair no - 76.10.57

Remove

1. Remove cheater panel.
2. Disconnect 2 Lucars from tweeter and place cheater panel aside.
3. Disconnect multiplug from mirror.
4. Hold mirror and remove 2 Torx screws.
5. Remove mirror.
6. Collect clamping plate.

Refit

1. Position mirror, locate clamping plate, fit and tighten Torx screws to 6 Nm.
2. Connect multiplug to mirror.
3. Connect Lucars to tweeter in cheater panel.
4. Fit cheater panel.
