Finisher - roof panel

FINISHER - ROOF PANEL

Service repair no - 76.43.68

Remove

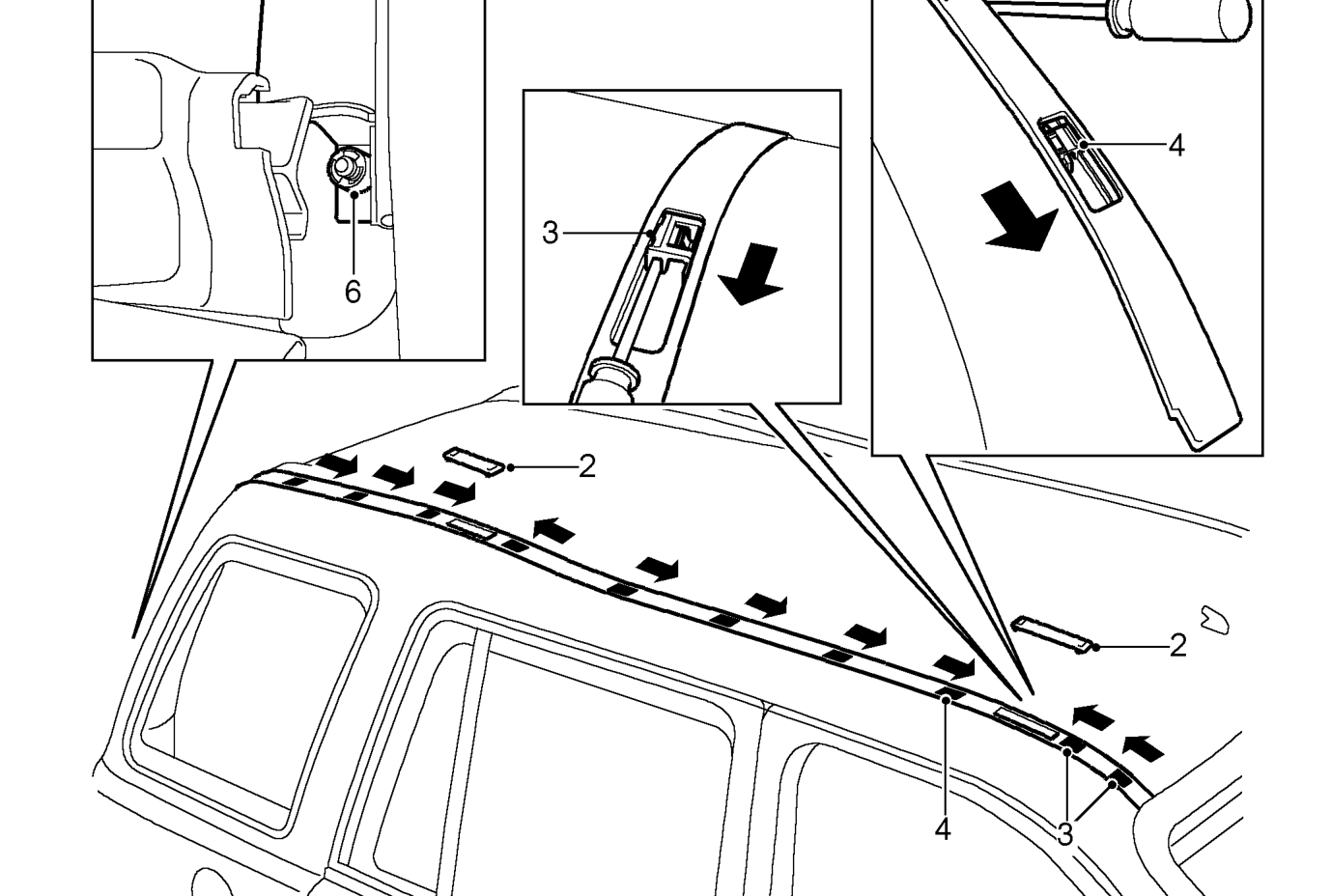

1. Remove tail door glass side finisher. See Doors.

2. Remove roof finisher caps or, if roof rack fitted, remove side rail. See this section.
3. Using a suitable hooked tool in the front foot hole of the roof finisher, slide the finisher’s 2 forward clips rearward from the roof channel.
4. Slide the clip rear of the foot hole forward from the roof channel.
5. Slide the remaining 7 clips from the roof channel.
6. Remove nut securing rear end of roof finisher.
7. Remove finisher.
