MOUNTING BRACKET - SPARE WHEEL

Service repair no - 76.11.18

Remove

Mounting bracket - spare wheel – Service repair no - 76.11.18

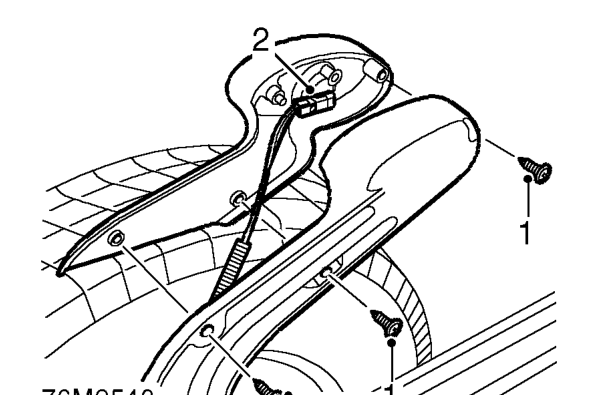

  1. Lower tail door glass and remove 3 screws securing high mounted stop lamp.
  2. Disconnect multiplug and remove lamp.
Mounting bracket - spare wheel – Disconnect multiplug and remove lamp.

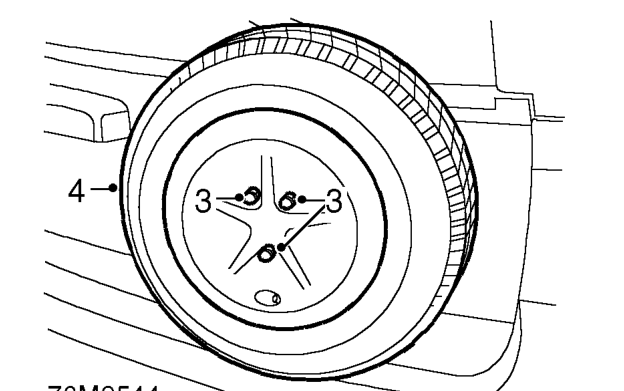

  1. Remove 3 nuts securing spare wheel to mounting bracket.
  2. Remove spare wheel from mounting bracket.
Mounting bracket - spare wheel – Remove spare wheel from mounting bracket.

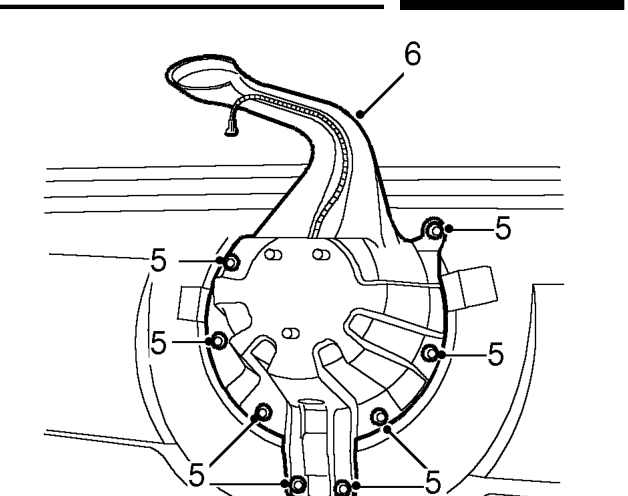

  1. Remove 6 bolts and 2 nuts securing spare wheel mounting bracket to tail door.
  2. Remove mounting bracket.

Refit

  1. Position spare wheel mounting bracket to tail door and tighten bolts to Nm.
  2. Tighten mounting bracket nuts to Nm.
  3. Position stop lamp and connect multiplug.
  4. Fit and tighten screws securing stop lamp.
  5. Fit spare wheel and tighten nuts to 45 Nm.
  6. Raise tail door glass.
