WING - FRONT

Service repair no - 76.10.24

Remove

  1. Remove front mud flap. See this section.
  2. Remove lower sill finisher. See this section.
Wing - front – Remove lower sill finisher. See this section.

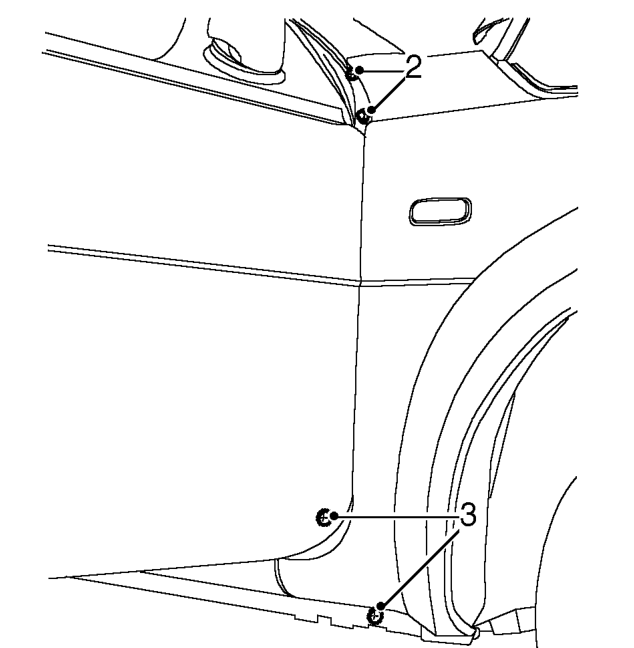

  1. Remove 3 Torx screws and 1 bolt securing rear of front wing.
Wing - front – Remove 3 Torx screws and 1 bolt securing rear of front wing.

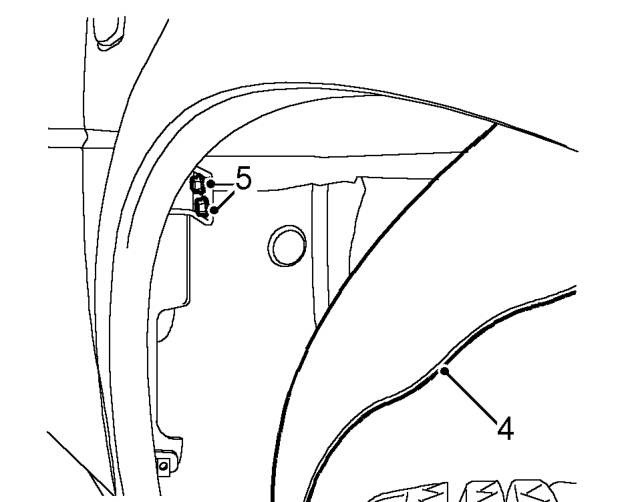

  1. Release wheel arch liner from rear of front wing.
  2. Remove 2 bolts securing wing bracket to ’A’ post.
Wing - front – Remove 2 bolts securing wing bracket to ’A’ post.

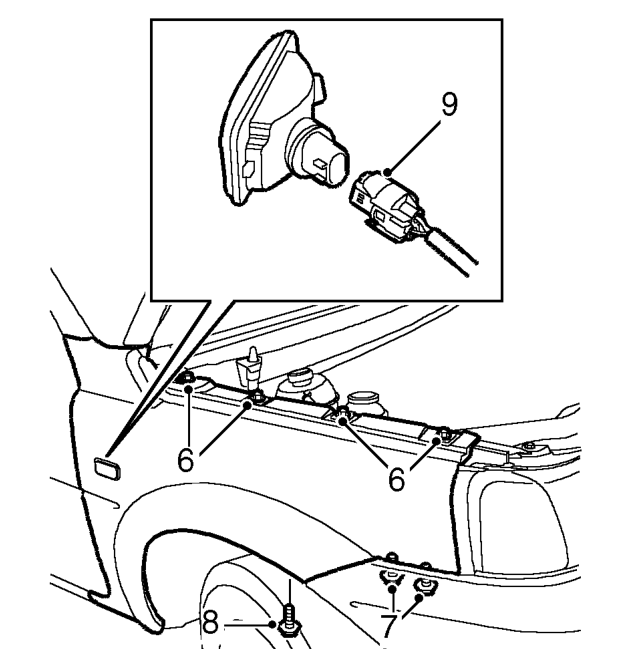

  1. Remove 4 bolts securing top of wing.
  2. Remove 2 bolts securing front of wing.
  3. Remove screw securing wheelarch liner to under side of wing.
  4. Release wing from body, disconnect multiplug from repeater lamp.
  5. Remove front wing from body.
