Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Wheel arch extension - rear

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Exterior fittings › Wheel arch extension - rear
BodyWheel arch extension - rear

WHEEL ARCH EXTENSION - REAR

Service repair no - 76.43.94

Remove

  1. Raise rear of vehicle.
  2. Remove road wheel(s).

5 door models

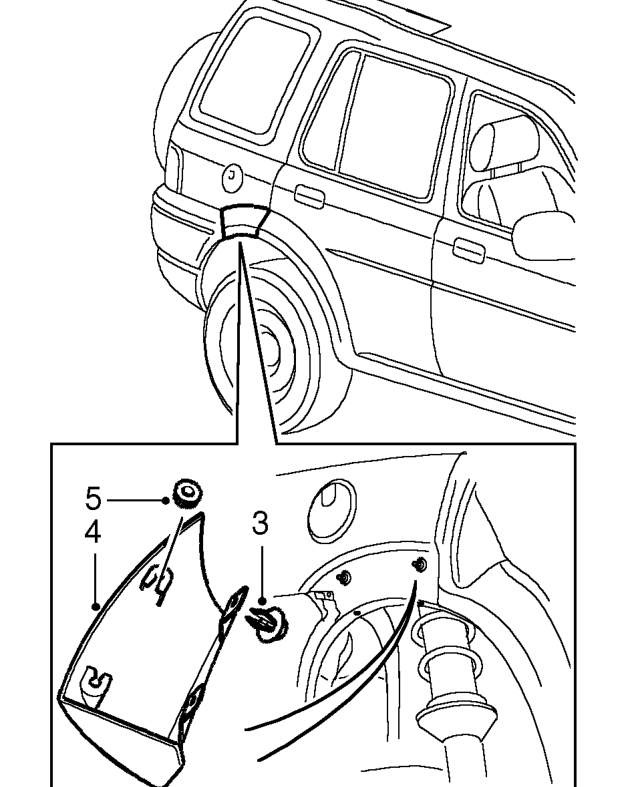

5 door models – Remove road wheel(s).
  1. Remove 2 scrivets securing extension to edge of wheel arch.
  2. Remove wheel arch extension from 2 fixing studs.
  3. Remove fasteners from arch extension.

3 door models

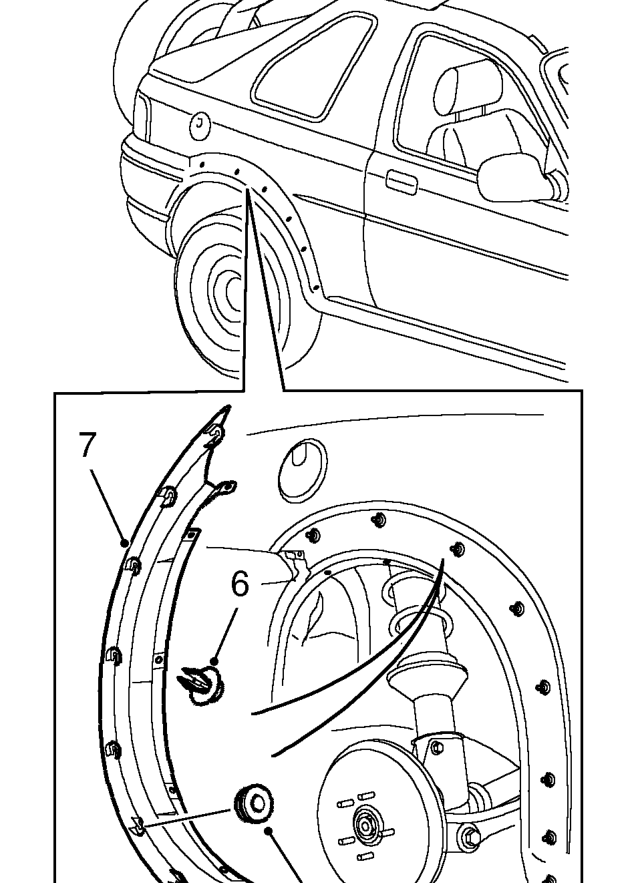

3 door models – Remove fasteners from arch extension.
  1. Remove 6 scrivets securing extension to edge of wheel arch and sill panel.
  2. Remove wheel arch extension from 8 fixing studs.
  3. Remove fasteners from arch extension
