BodyFinisher - roof panel · page 2 of 2

Refit

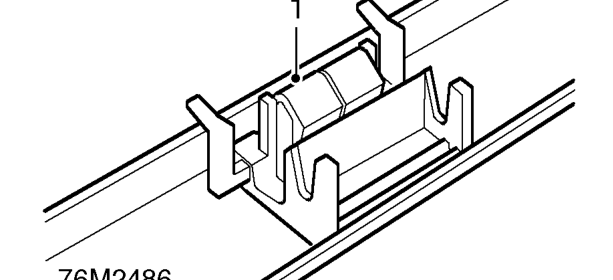

1. Fit clips to finisher.
2. Fit finisher to roof channel with forward two clips.
3. Slide finisher to align with screen. Feed forward clip below screen seal.
4. Fit remaining clips to roof channel.
5. Fit nut to secure rear end of finisher.
6. Ensure full length of finisher is correctly seated in roof channel.
7. Fit roof finisher caps or roof rack side rail. See this section.
8. Fit tail door glass side finisher. See Doors.
