Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Mud flap - front

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Exterior fittings › Mud flap - front
BodyMud flap - front

MUD FLAP - FRONT

Service repair no - 76.10.83

Remove

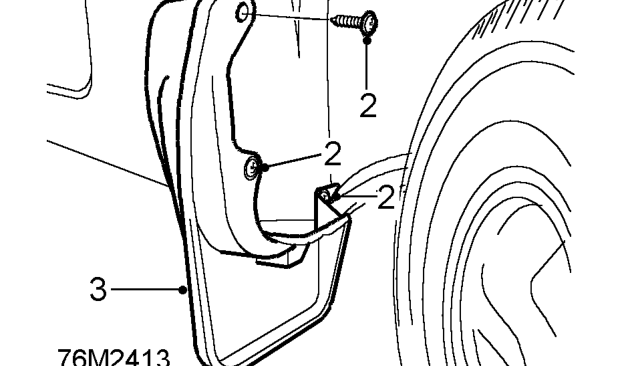

Mud flap - front – Service repair no - 76.10.83
  1. Turn steering wheel to full lock.
  2. Remove 3 screws securing mud flap.
  3. Remove mud flap.

Refit

  1. Position mud flap to body and secure with screws.
  2. Straighten steering.

MUD FLAP - REAR

Service repair no - 76.10.85

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

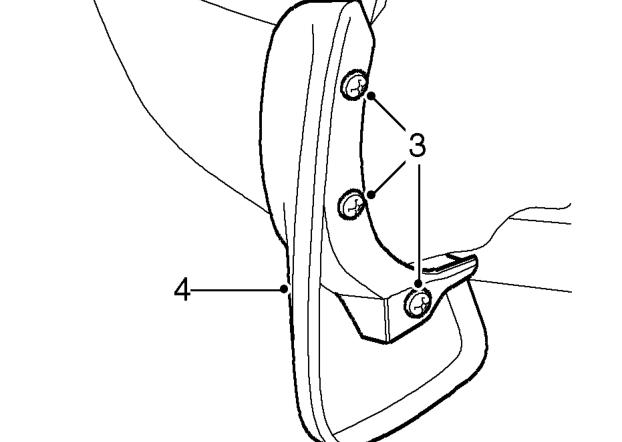

Mud flap - rear – Remove road wheel(s).
  1. Remove 3 screws securing mud flap.
  2. Remove mud flap.

Refit

  1. Position mud flap to body and secure with screws.
