Wheel arch liner - front

Refit

1. Position front wing to body.
2. Connect repeater lamp multiplug.
3. Align front wing to body.
4. Fit, but do not tighten, the following: Torx screws and bolt securing rear of wing to

’A’ post. Bolts securing wing bracket to ’A’ post.

Bolts securing top of wing.

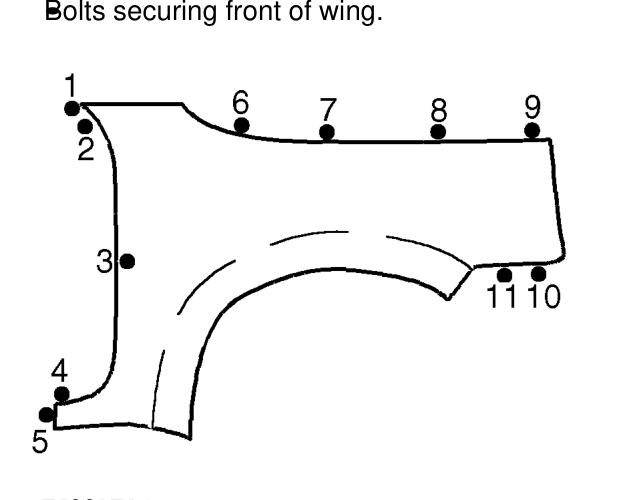

Bolts securing front of wing.

5. Align wing and tighten bolts and Torx screws, in sequence shown above, to 5 Nm.
6. Align wheel arch liner to rear of wing.
7. Fit screw securing wheelarch liner to under side of wing.
8. Fit lower sill finisher. See this section.
9. Fit front mud flap. See this section.

WHEEL ARCH LINER - FRONT

Service repair no - 76.10.48

Remove

1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

2. Remove road wheel(s).
3. Remove front mud flap. See this section.

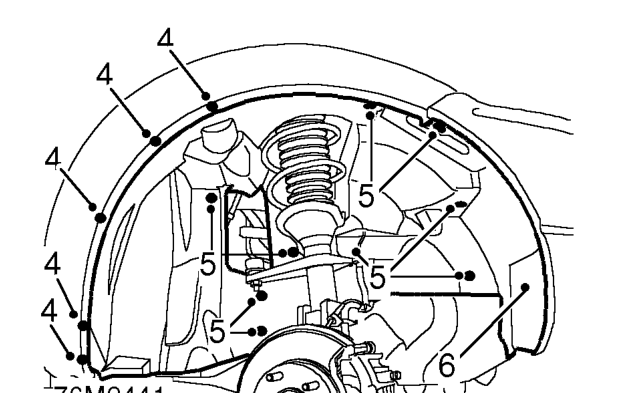

4. Remove 5 screws securing wheel arch to front wing.
5. Remove 8 scrivets securing wheel arch to inner wing.
6. Remove wheel arch liner from inner wing.

Refit

1. Position wheel arch liner to inner wing, locate behind wheel arch cladding.
2. Fit scrivets securing wheel arch liner to inner wing.
3. Fit screws securing wheel arch liner to front wing.
4. Fit mud flap. See this section.
5. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
6. Remove stand(s) and lower vehicle.
