Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Bumper valance - front

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Exterior fittings › Bumper valance - front
BodyBumper valance - front · page 1 of 2

BUMPER VALANCE - FRONT

Service repair no - 76.22.72

Remove

  1. Remove front grille. See this section.
Bumper valance - front – Remove front grille. See this section.

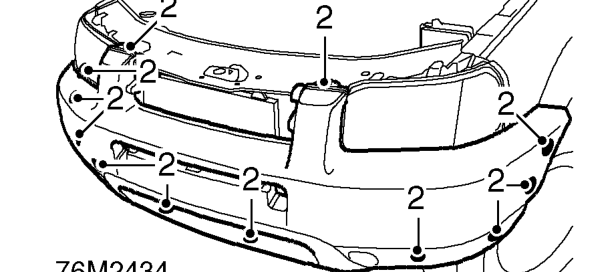

  1. Remove 12 screws securing bumper valance to body.
Bumper valance - front – Remove 12 screws securing bumper valance to body.

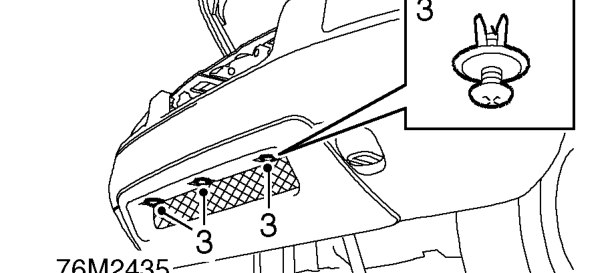

  1. Remove 3 scrivets from bumper valance.
Bumper valance - front – Remove 3 scrivets from bumper valance.

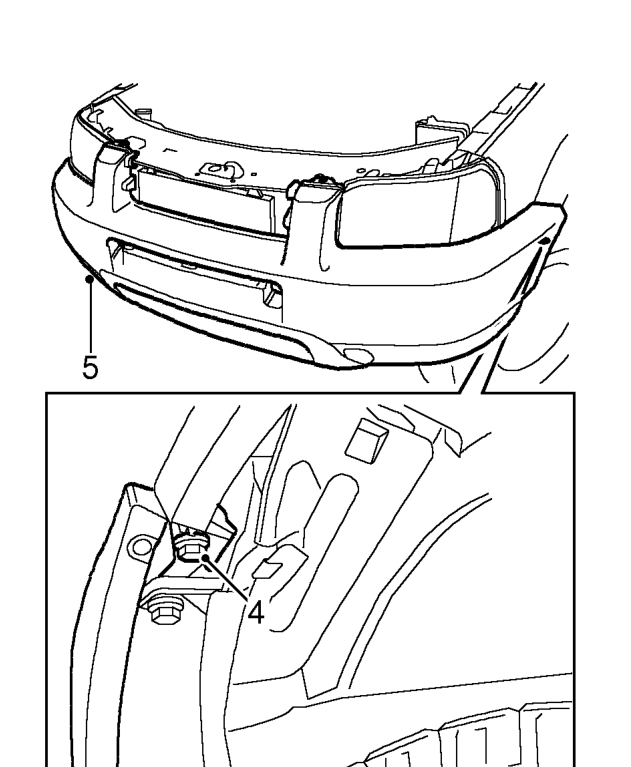

  1. Remove wheelarch liner access panel and loosen bolts under front of each wing.
  2. With assistance, remove bumper valance. Do not carry out further dismantling if component is removed for access only.
  3. Remove number plate.
