Bumper valance - front (page 2 of 2)

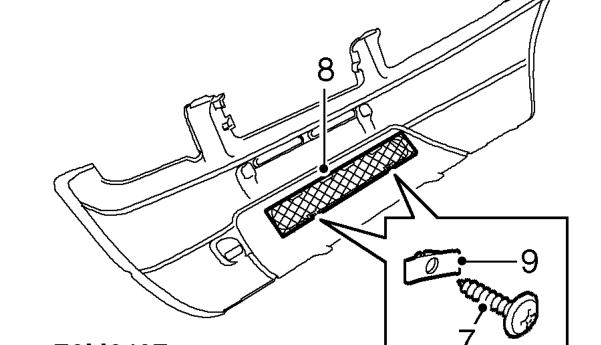

7. Remove 2 screws from bumper grille.
8. Remove bumper grille.
9. Remove 2 spire nuts.
10. Fit spire nuts to replacement bumper valance.
11. Position bumper grille on replacement bumper valance and secure with screws.
12. Fit number plate on replacement bumper valance.

Refit

1. With assistance position bumper valance to body.
2. Tighten bolts under each front wing to 5 Nm.
3. Fit wheelarch liner access panel.
4. Fit scrivets.
5. Fit screws securing bumper valance to body.
6. Fit front grille. See this section.
