Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Grille - front

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Exterior fittings › Grille - front
BodyGrille - front

Refit

  1. Fit fasteners to arch extension.
  2. Fit wheel arch extension to studs.
  3. Fit scrivets securing extension to wheel arch.
  4. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  5. Remove stand(s) and lower vehicle.

GRILLE - FRONT

Service repair no - 76.55.03

Remove

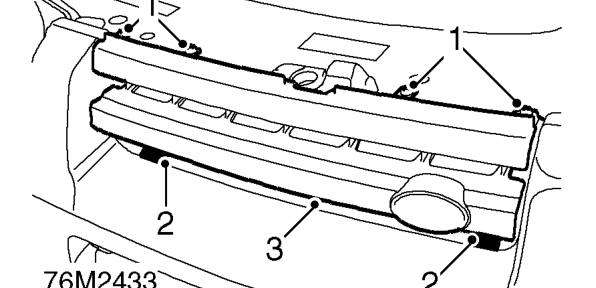

Grille - front – Service repair no - 76.55.03
  1. Remove 4 screws from grille.
  2. Release 2 catches securing bottom of grille.
  3. Remove grille.

Refit

  1. Position grille to body, locate with securing catches.
  2. Fit and tighten screws.
