L322 Range Rover Service Procedures
NAVIGATION AND IN CAR ENTERTAINMENT
REPAIRS 86-7-11

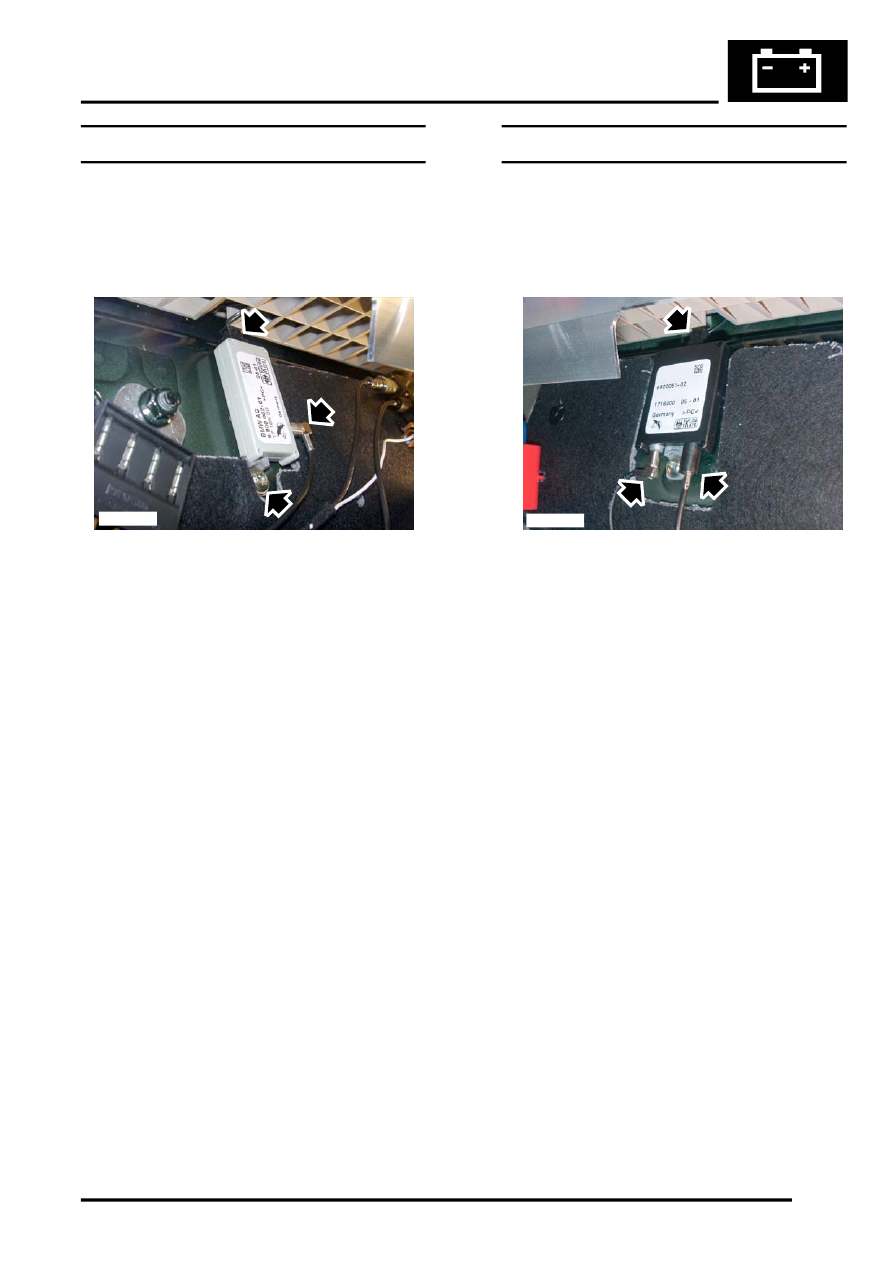

Amplifier - television (TV) - LH
$% 86.53.18
Remove
1. Remove access panel from load space LH trim
casing.
2. Disconnect coaxial cable.
3. Remove Torx screw securing amplifier.
4. Disconnect multiplug and remove amplifier.
Refit
1. Position amplifier and connect multiplug.
2. Fit amplifier and tighten Torx screw to 6 Nm
(4.4 lbf.ft)
3. Connect coaxial cable.
4. Fit access panel.
Amplifier - television (TV) - RH
$% 86.53.19
Remove
1. Remove RH access panel from load space trim
casing.
2. Disconnect coaxial cable.
3. Remove Torx screw securing aerial amplifier.
4. Disconnect multiplug and remove amplifier.
Refit
1. Position amplifier and connect multiplug.
2. Fit amplifier and tighten Torx screw to 6 Nm
(4.4 lbf.ft)
3. Connect coaxial cable.
4. Fit access panel to load space trim casing.
M86 5817
M86 5811
