Control unit - telephone (TCU)
$% 86.53.12
If the TCU is to be replaced then Testbook/T4 must
be connected and correct procedures adhered to,
prior to battery disconnection.

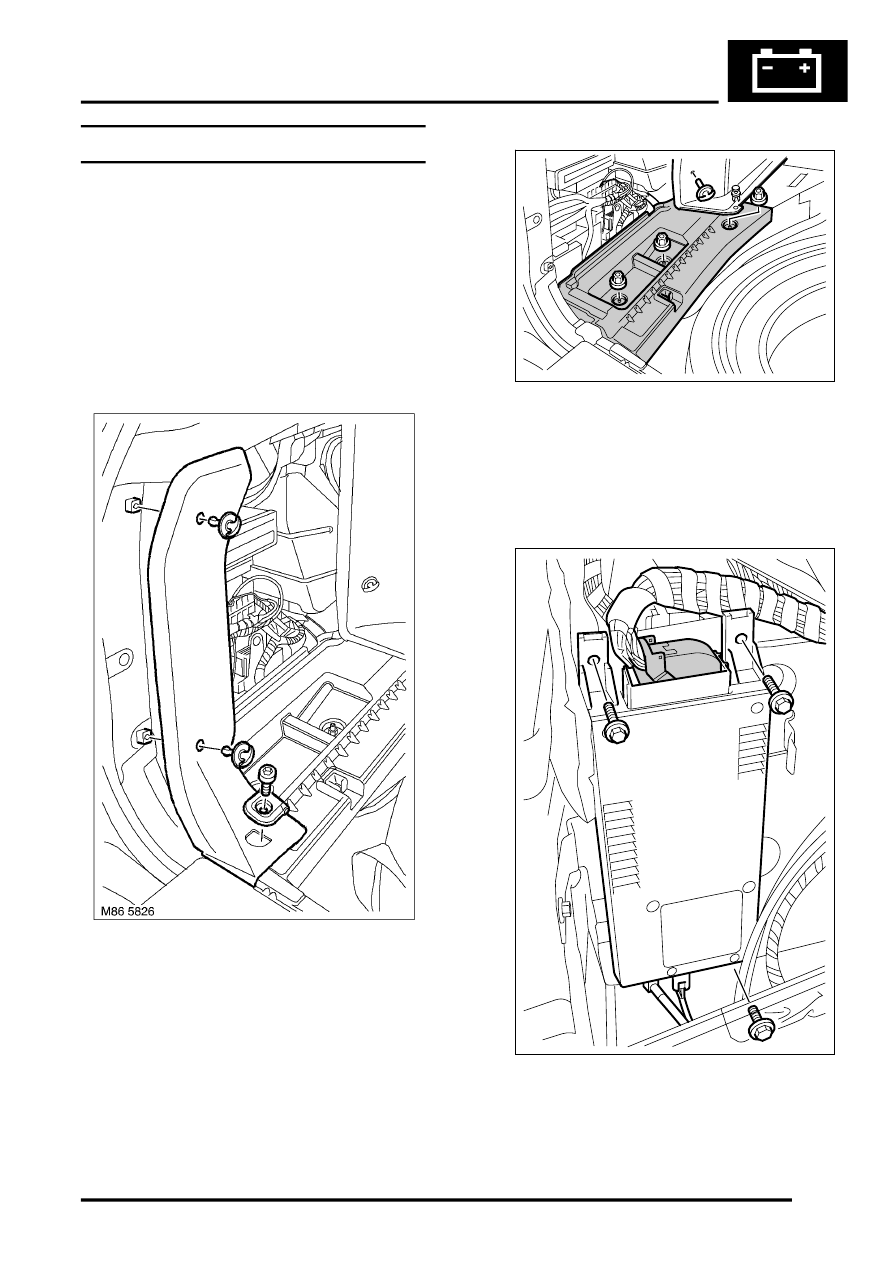

Remove
1. Remove access panel from load space LH trim
casing.
2. Remove load space LH stowage bin cover.
3. Raise and support spare wheel cover.
4. Remove Allen bolt securing lashing ring and
remove ring.
5. Remove 2 turnbuckles securing load space LH
rear trim casing.
6. Carefully release and remove trim casing.
7. Remove lower turnbuckle securing load space
LH front trim casing.
8. Remove trim stud securing load space LH front
trim casing to stowage bin.
9. Remove 3 nuts securing stowage bin, carefully
release and remove bin.
10. Disconnect multiplug from TCU.
11. Remove 3 bolts securing TCU and release
TCU.
M86 5827
M86 5831
