L322 Range Rover Service Procedures
NAVIGATION AND IN CAR ENTERTAINMENT
86-7-8
REPAIRS
Amplifier - aerial - diversity
$% 86.53.08
Remove
1. Remove access panel from load space LH trim
casing.
2. Disconnect multiplug from amplifier
3. Disconnect coaxial cable.
4. Loosen nut and disconnect coaxial cable.
5. Remove Torx screw securing amplifier.
6. Disconnect multiplug and remove amplifier.
Refit
1. Position amplifier and connect multiplug.
2. Fit amplifier and tighten Torx screw to 6 Nm
(4.4 lbf.ft)
3. Connect coaxial cables.
4. Connect multiplug.
5. Fit access panel.
Antenna - telephone
$% 86.53.11
Remove
1. Remove access panel from load space LH trim
casing.
2. Remove 2 nuts securing antenna and release
antenna.
3. Disconnect multiplug and remove antenna
Refit
1. Position antenna and connect multiplug.
2. Fit antenna and tighten nuts to 6 Nm (4.4 lbf.ft).
3. Fit access panel.

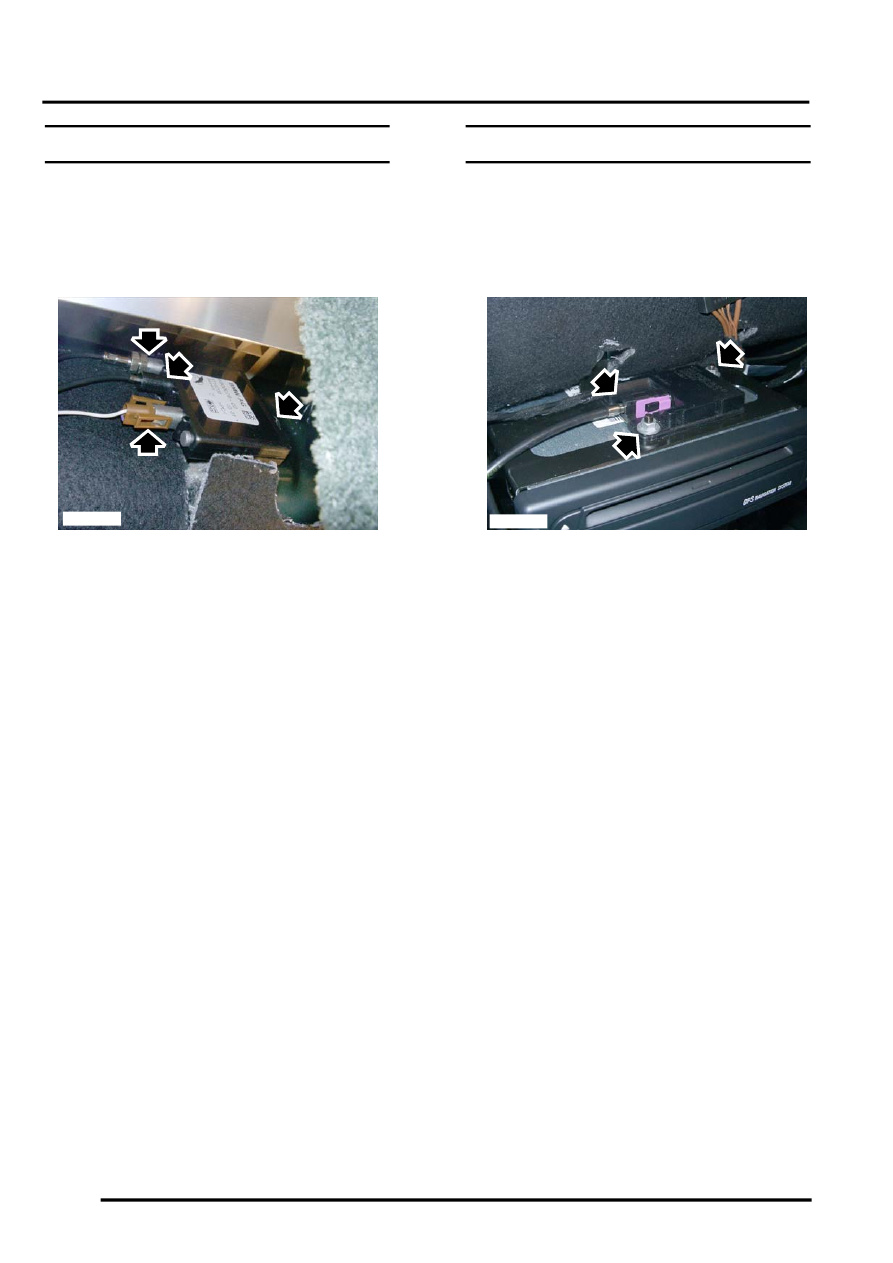

M86 5816
M86 5823
