L322 Range Rover Service Procedures
NAVIGATION AND IN CAR ENTERTAINMENT
86-7-10 REPAIRS

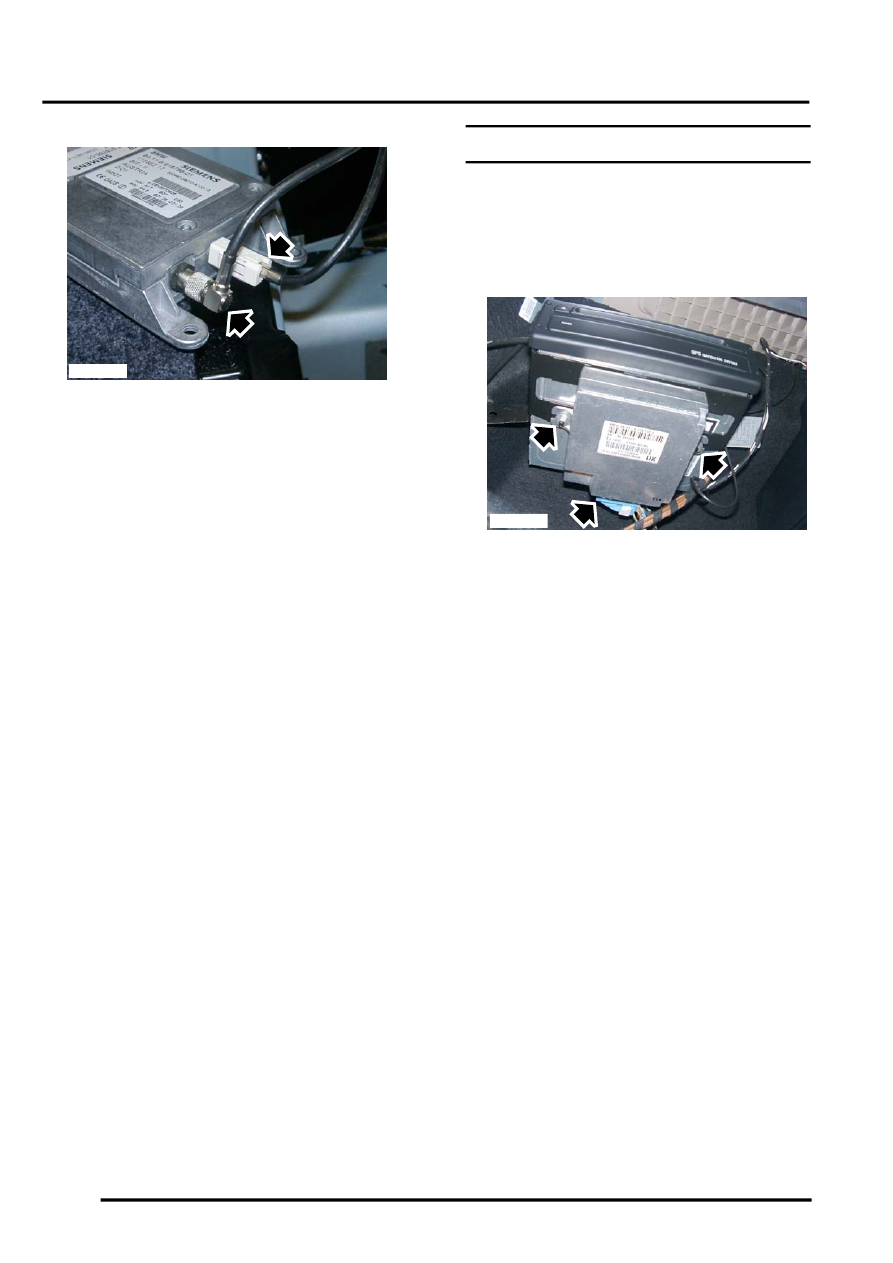

12. Loosen nut and disconnect coaxial cable.
13. Disconnect multiplug and remove TCU.
Refit
1. Position TCU and connect multiplug.
2. Connect coaxial cable and secure with nut.
3. Fit TCU and tighten bolts to 10 Nm (7 lbf.ft).
4. Connect multiplug to TCU.
5. Fit stowage bin and secure with nuts.
6. Fit trim stud securing LH front trim casing.
7. Fit turnbuckle securing LH front trim casing.
8. Fit LH rear trim casing, align to tailgate seal and
fit turnbuckles.
9. Fit lashing eye and tighten Allen bolt to 25 Nm
(18 lbf.ft).
10. Lower and secure spare wheel cover.
11. Fit stowage bin cover.
12. Fit access panel.
13. Configure new TCU using TestBook/T4.
Voice recognition module
$% 86.53.13
Remove
1. Remove access panel from load space LH trim
casing.
2. Remove 2 nuts securing voice recognition
module and release module.
3. Disconnect multiplug and remove voice
recognition module.
Refit
1. Position voice recognition module and connect
multiplug.
2. Fit voice recognition module and tighten nuts to
6 Nm (4.4 lbf.ft).
3. Fit access panel.
M86 5832
M86 5822
